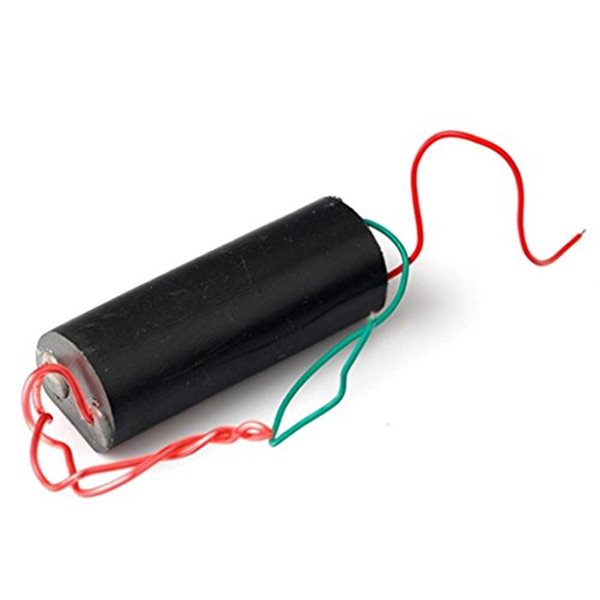

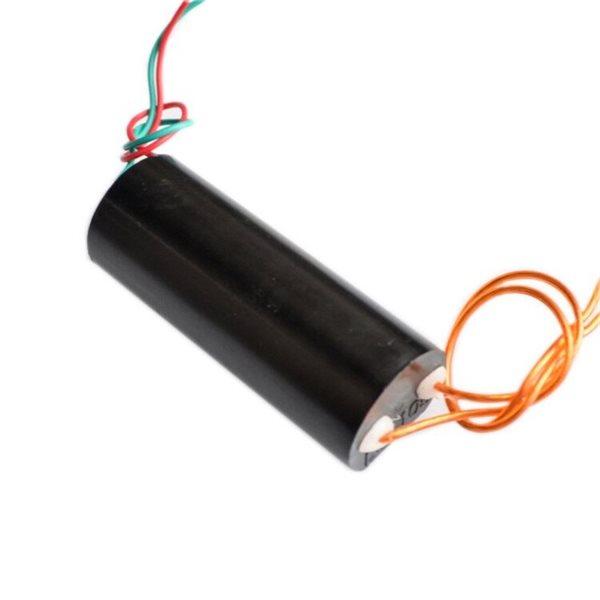

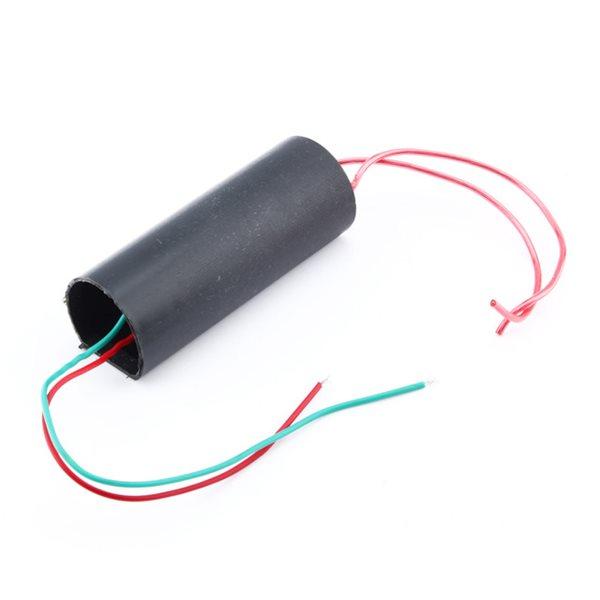

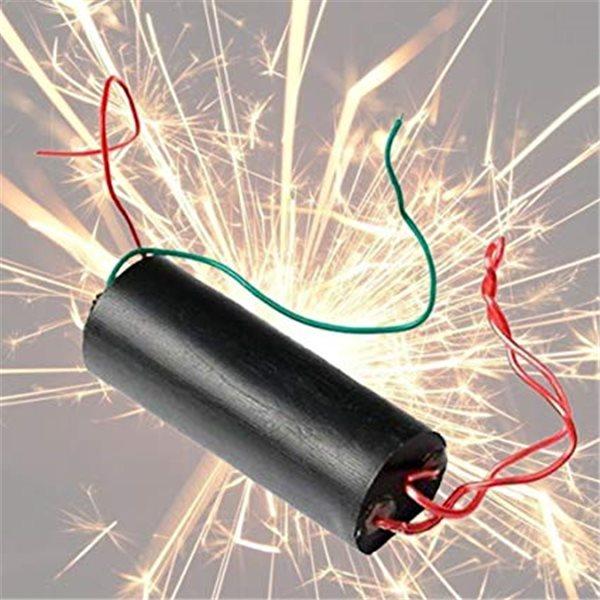

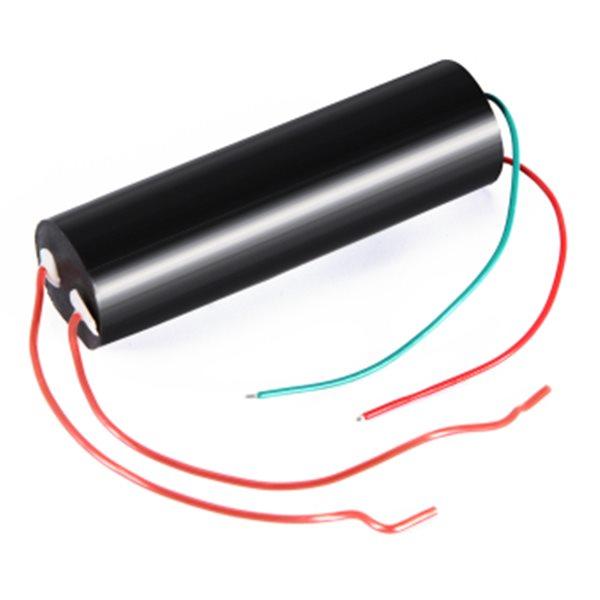

High Voltage Transformer DC 3v-6v to 400kV Boost Step-up Power Module High-voltage Generator 400000V

Description:

High Voltage Transformer DC 3v-6v to 400kV Boost Step-up Power Module High-voltage Generator 400000V


Input voltage: DC 3 V to 6 V
Input current: 2 A - 5 A
High pressure type: the type of pulse current
Output voltage: 400000 v(Please pay attention to safety)
High pressure discharge distance between: 10 mm - 20 mm
The output high voltage wire length: 100 mm
Input power cord length: 100 mm (the red line is positive)

Wiring: Red and green power connection red line:"+" green line "-"
Output : the other side ,same color cable

size:24x22x63mm





Note:

Notice:
the high-voltage module should avoid the use of electricity in high voltage no-load . (Power must be adjusted to a suitable distance to the high-voltage output line , battery capacity is proportional to the distance and the use of the high-pressure arc ( not a voltage as high as possible , you must provide enough current ) .

Experimental test of the arc distance from short to long , Do not exceed the maximum arc distance electricity, energy can not be released due to high pressure , can easily damage the module. )
Work: intermittent , continuous work does not allow more than 1 minute and the output side does not allow shorting . Improper voltage and long working hours easily damaged module



Kit include:

1 * DC 3v-6v to 400kV 400000V Boost Step-up Power Module High-voltage Generator

10 JD
12 JD
Quantity
12 in stock
10 JD 1+ units
9.5 JD 10+ units
9 JD 25+ units
8.5 JD 100+ units
