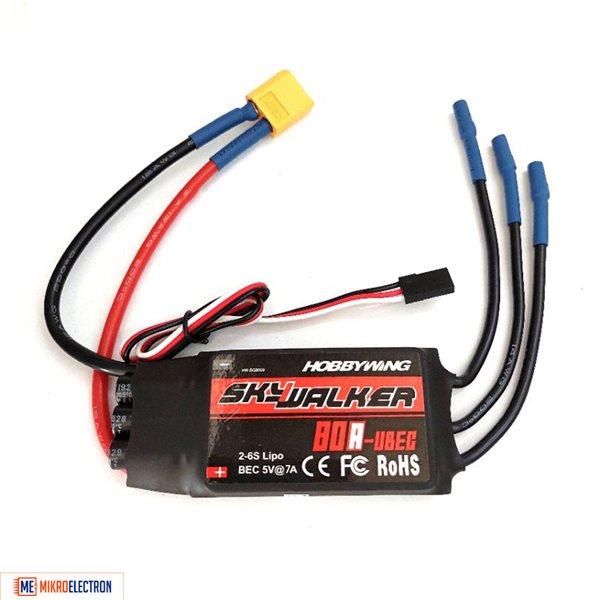

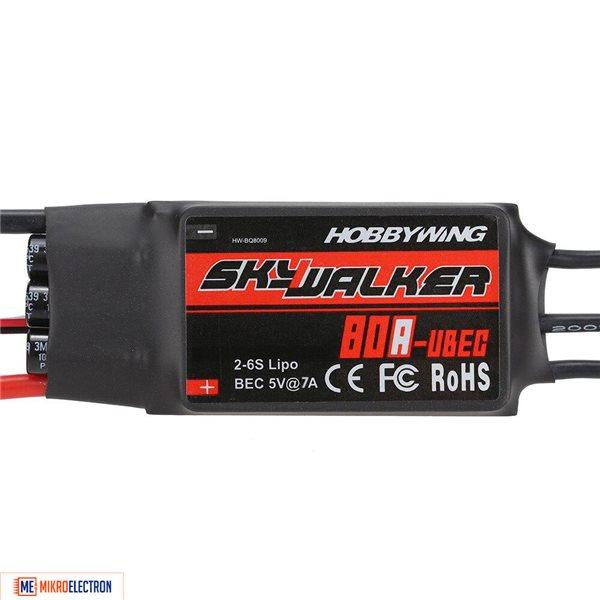

Hobbywing Skywalker 80A Brushless ESC Speed Controller With UBEC

Description:

1 Output: Continuous 80A, Burst 100A up to 10 seconds.
2 Input Voltage: 2-6S Lipo, 5-18 cells NiMH.
3 BEC: 5A / 5V Switch mode BEC.
4 Refresh rate of the throttle signal: 50Hz to 432Hz.
5 Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.
(BLM = BrushLess Motor)
6 Size: 86mm*38mm*12mm.
7 Weight: 82g.

Features:

1 Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.

2 Throttle calibration function: Throttle range can be calibrated to be compatible with different transmitters.

3 User programmable.

4 Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at the flying field.

5 Compatible with Lipo and NiMH battery.

6 Timing can be changed to be suitable for different brushless motors.

7 Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.


50 JD
Quantity
4 in stock
50 JD 1+ units
95 JD 10+ units
90 JD 25+ units
85 JD 100+ units
