Description:

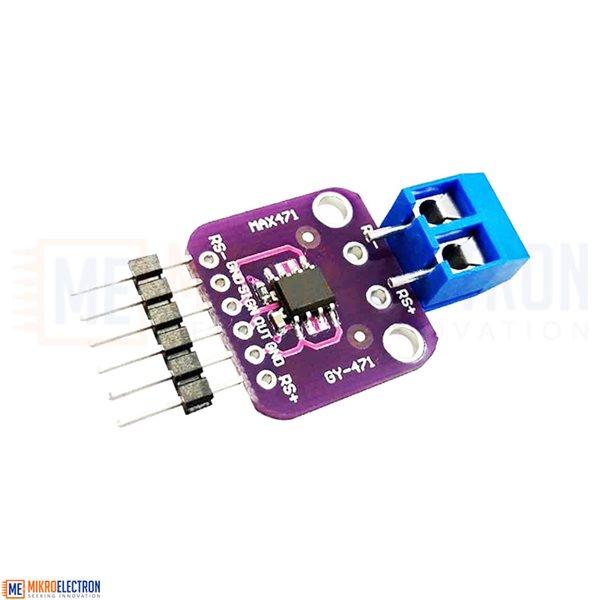

The MAX471 GY-471 3A Current Sensor Module is a complete, bidirectional, high side current-sense amplifier for portable PCs, telephones, and other systems where battery/DC power-line monitoring is critical.

The MAX471 GY-471 3A Current Sensor Module has an internal 35mΩ current-sense resistor and measures battery currents up to ±3A. The module has a built-in 2K Ohm sense resistor giving the module a full sensor range of +/- 3A.

An open-collector SIGN output indicates a current-flow direction, allowing the user to monitor whether a battery is being charged or discharged. Operation is from 3V to 36V, and draws less than 100µA over temperature.

Specifications:

Operating voltage: 3V – 36V

Operating current: +/- 3A

Dimensions: 20mm x 19.5mm

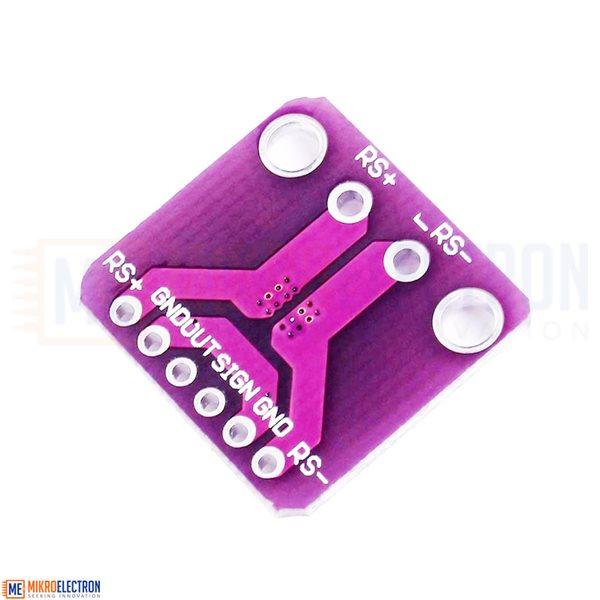

Pin Specifications:

Sensor RS+: Load positive supply (3V – 36V)

Sensor RS-: Connect to load or charger

Interface RS+: Alternative load positive supply (3V – 36V)

Interface GND: Connection to loads GND supply

Interface OUT: Sensor output (1V / Amp, 3V max)

Interface SIGN: Current flow direction, an open-collector logic output (low = current flow from RS+ to RS-)

Interface GND: Alternative GND

Interface RS-: Alternative load

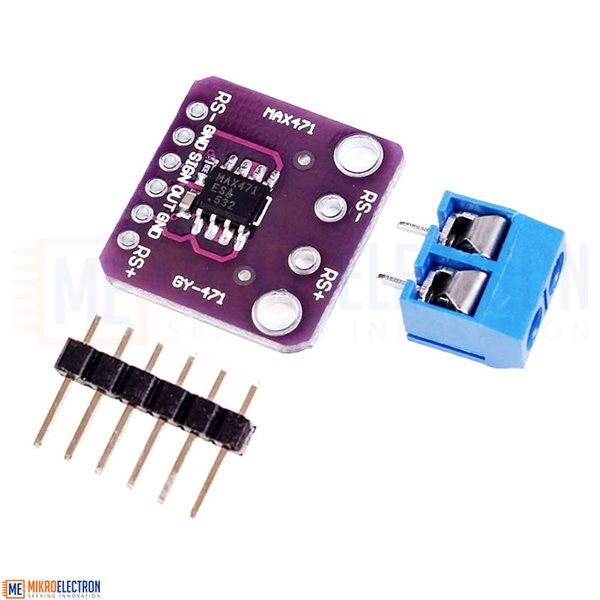

Kit include:

1 x MAX471 GY-471 3A Current Sensor Module

1 x Header Set

1 x Header Line Connections
