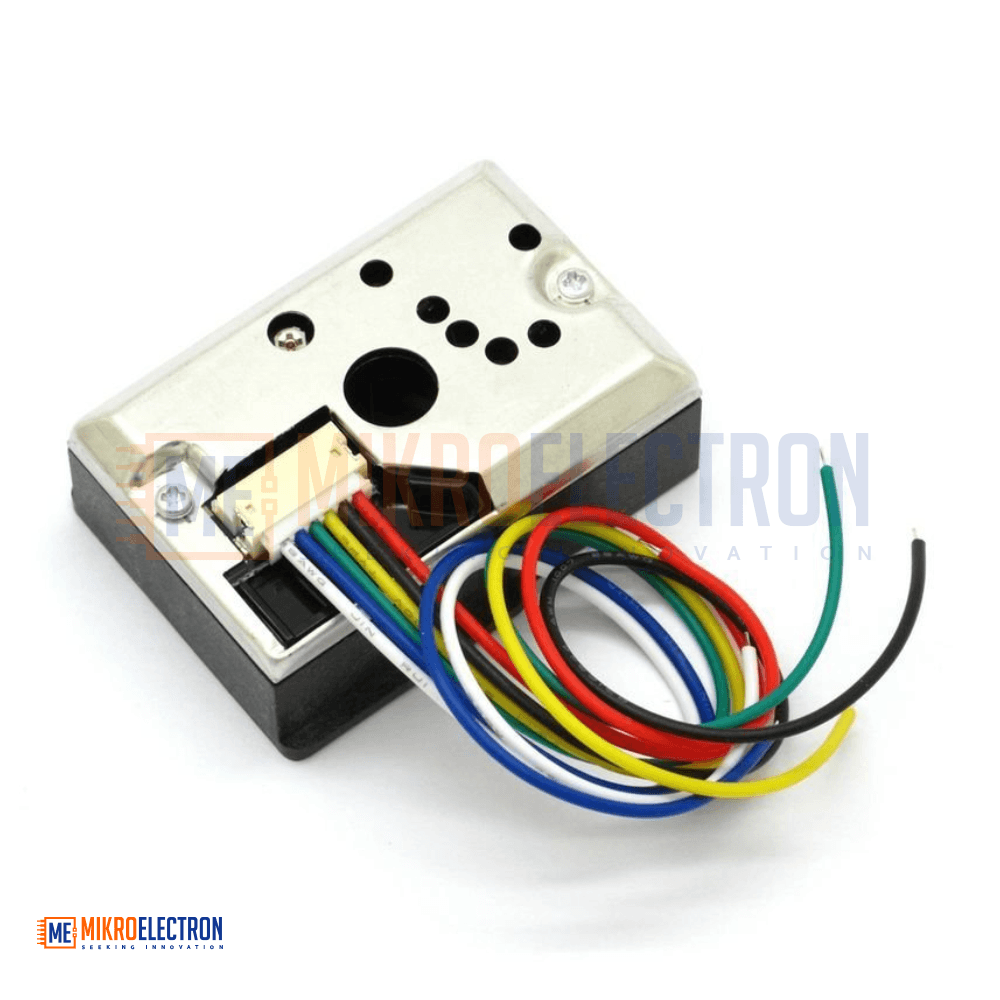

Description:

Sharp GP2Y1010AU0F onboard, detecting fine particle larger than 0.8μm in diameter, even like the cigarette smoke

Low power consumption, analog voltage output, the output level is linear with dust density

Embedded voltage boost circuit to support wide range of power supply

Applications

• Air purifier
• Air conditioner
• Air monitor
• PM2.5 Detector
• How to Use

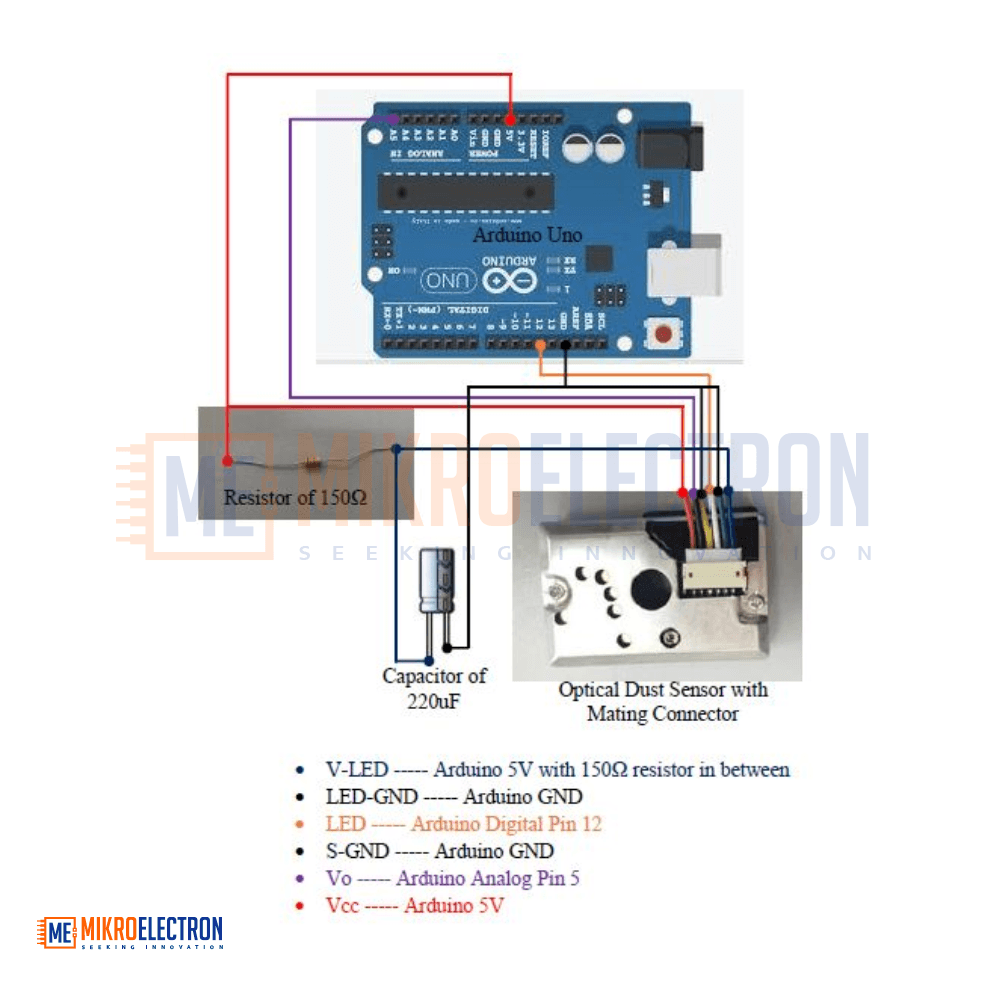

In the case of working with a MCU:

• VCC ↔ 2.5V ~ 5.0V

• GPD ↔ GND
• AOUT ↔ MCU.IO (analog output)
• ILED ↔ MCU.IO (module driving pin

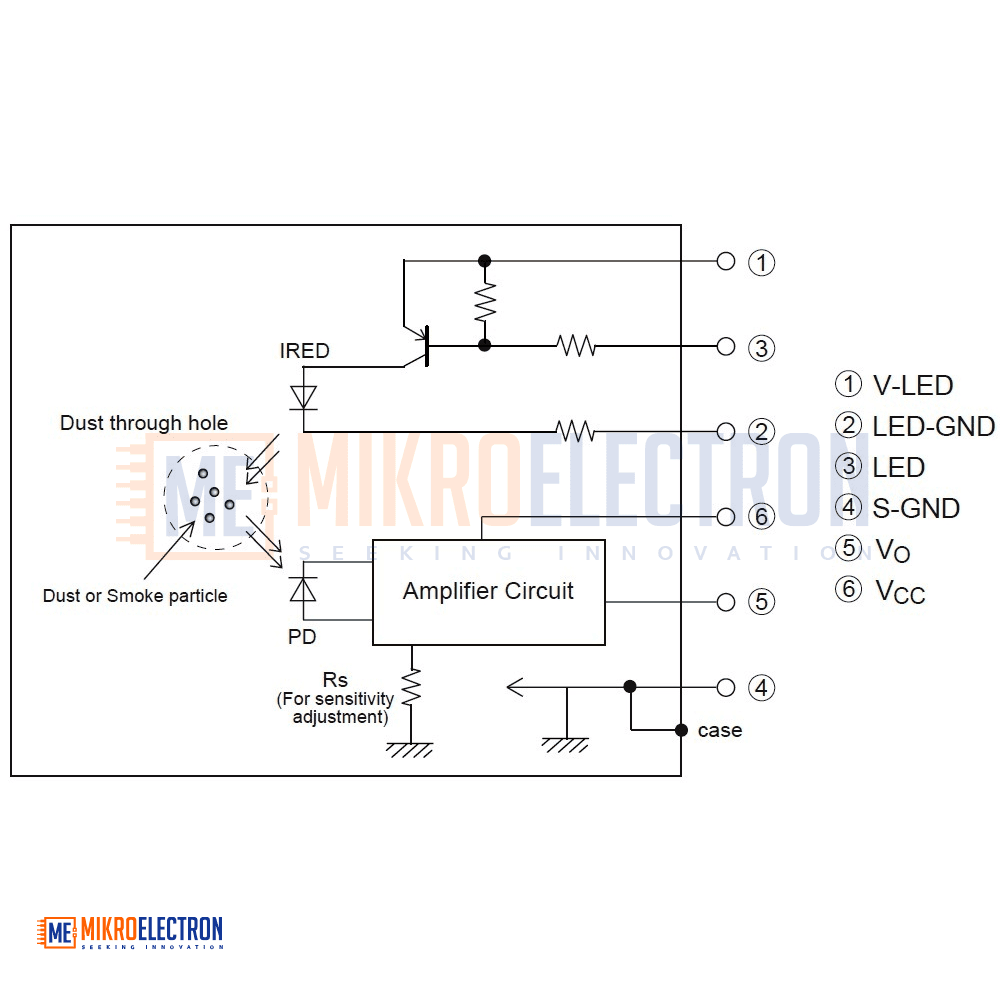

Features:

• Sensitivity : 0.5V/(100μg/m3)
• Measurement range : 500μg/m3
• Power : 2.5V~5.5V
• Operating current : 20mA(max)
• Operating temperature : -10~65 Centigrade
• Storage temperature : -20~80 Centigrade
• Life time : 5 years
• Dimension : 63.2mm×41.3mm×21.1mm
• Mounting holes size : 2.0mm
• Air hole size : 9.0mm

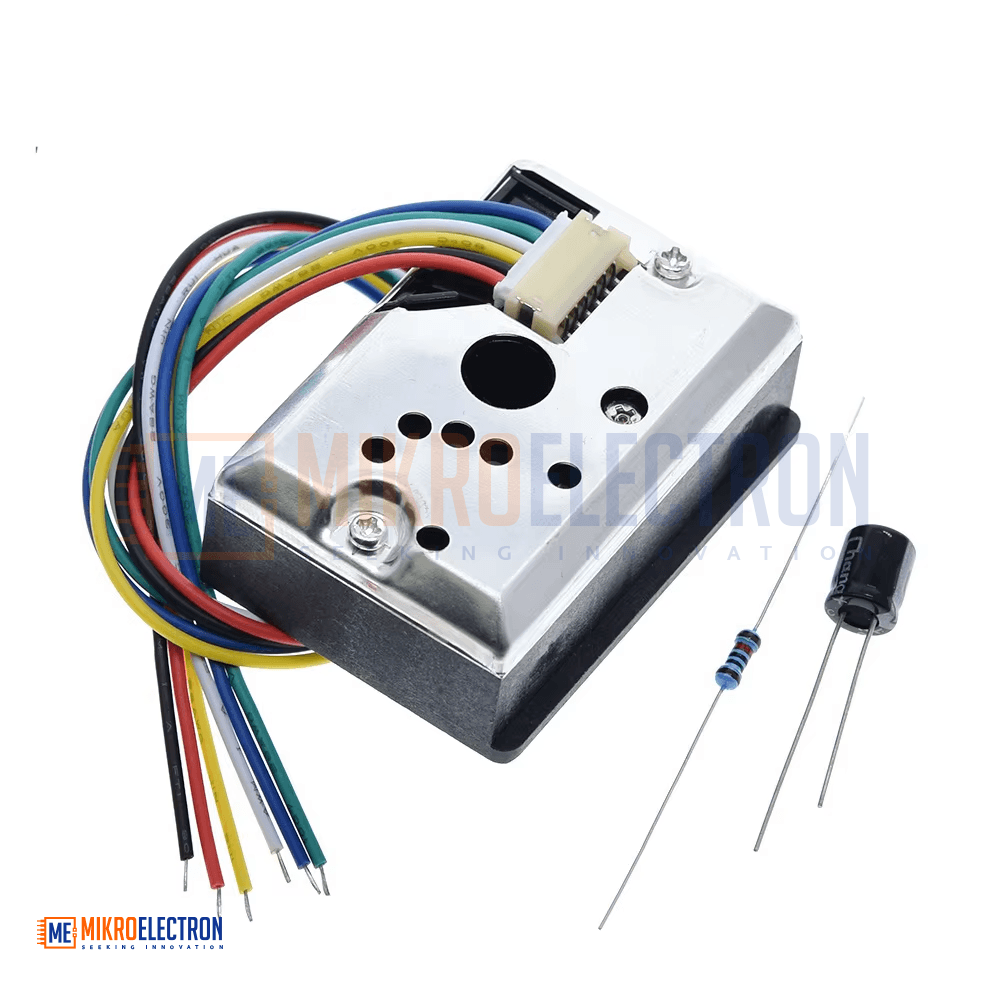

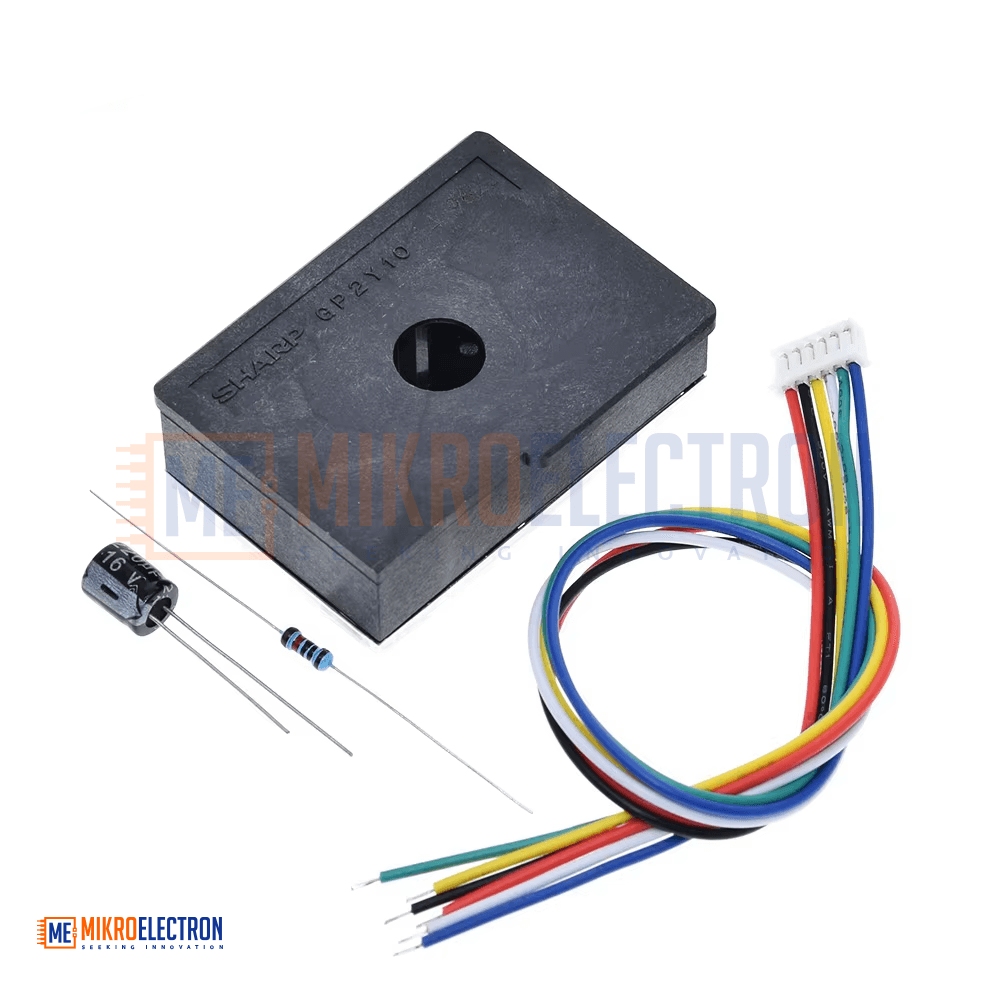

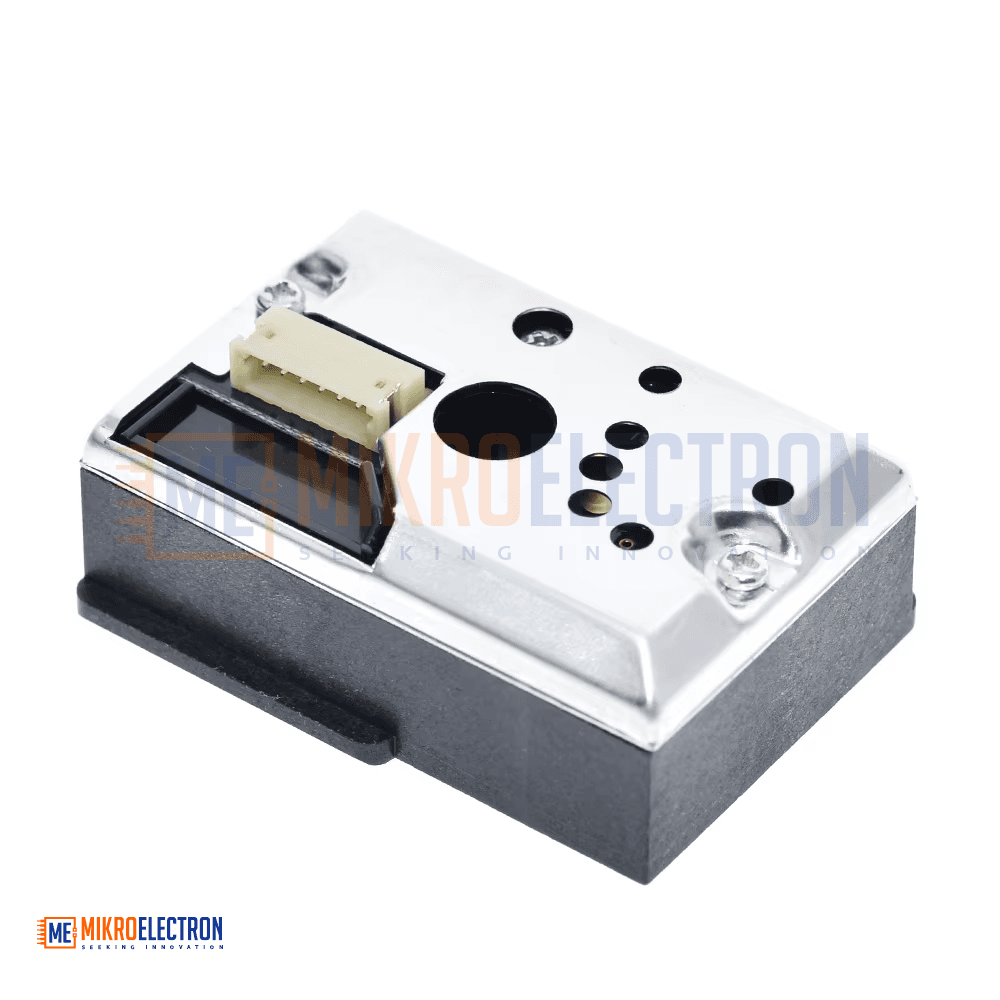

Kit include:

• Sharp GP2Y1010AU0F Dust Sensor   *1
• Cable   *1
• 150ohm resistor *1
• 16v220uF capacitor *1

Documents:

• Documents
