Description:

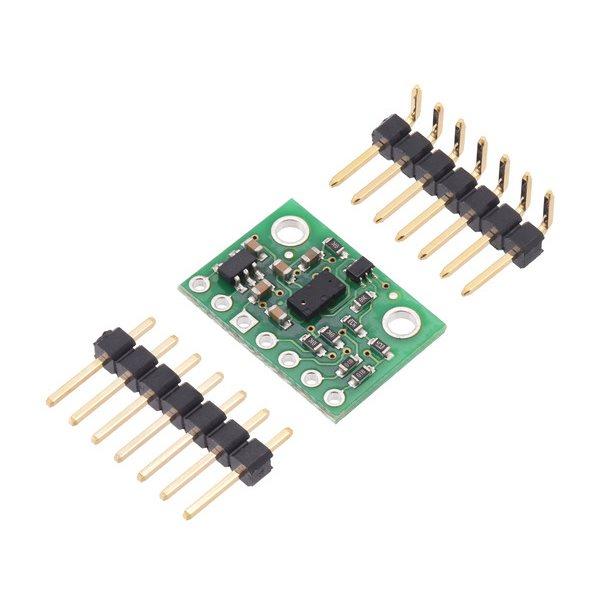

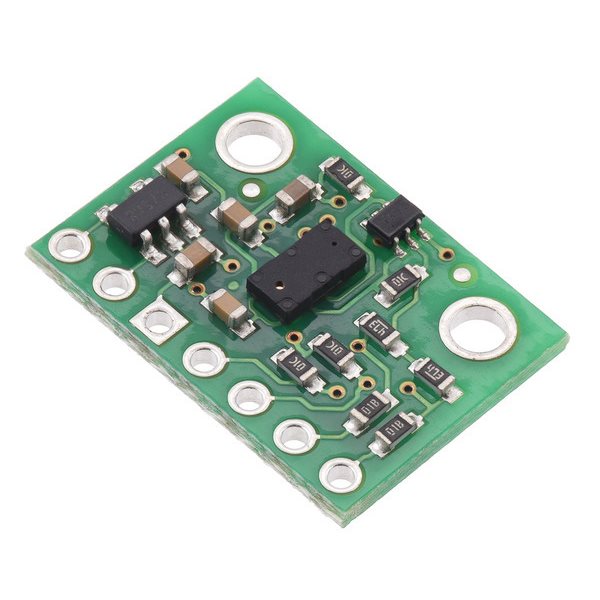

This sensor is a carrier/breakout board for ST’s VL53L3CX laser-ranging sensor, which offers fast and accurate ranging up to 5 m. It uses the time of flight (ToF) of invisible, eye-safe laser pulses to measure absolute distances to multiple targets simultaneously, independent of ambient lighting conditions and target characteristics like color, shape, and texture (though these things will affect the maximum range). Distance measurements can be read through a digital I²C interface. The board includes a 2.8 V linear regulator and level-shifters that allow it to work over an input voltage range of 2.6 V to 5.5 V, and the 0.1″ pin spacing makes it easy to use with standard solderless breadboards and 0.1″ perfboards.

Features:

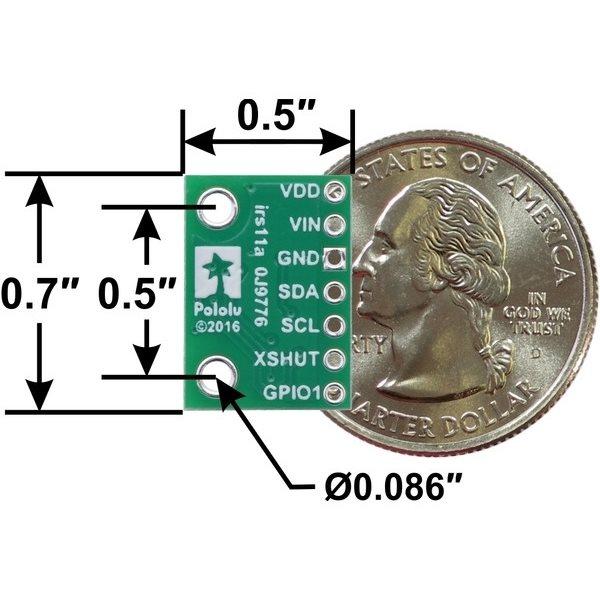

• Dimensions: 0.5″ × 0.7″ × 0.085″ (13 mm × 18 mm × 2 mm)
• Weight without header pins: 0.5 g (0.02 oz)

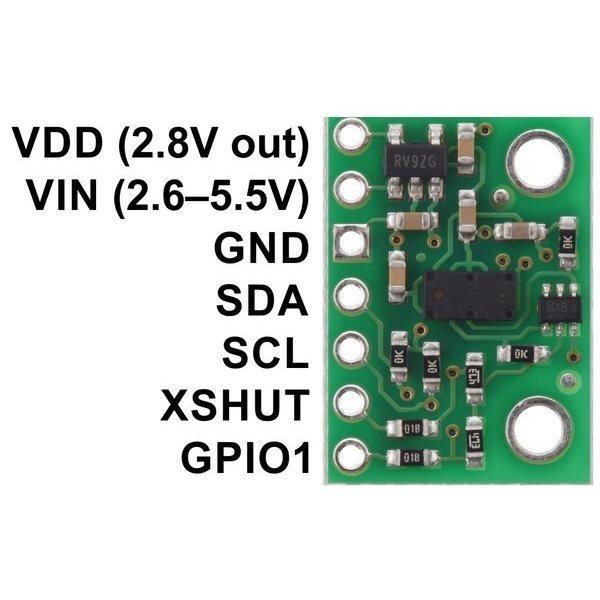

• Operating voltage: 2.6 V to 5.5 V
• Supply current: ~15 mA (typical average during active ranging with default settings)
  • Peak current can reach 40 mA
• Maximum range: 5 m (16 ft)
• Resolution: 1 mm
• Minimum range: 10 mm (0.4 in)
• Emitter: 940 nm invisible Class 1 VCSEL (vertical cavity surface-emitting laser) – eye-safe
• Detector: SPAD (single photon avalanche diode) receiving array
  • Typical full field of view (FoV): 25°
• Output format (I²C): histogram
