Description:

Product Introduction:

1.Operating Voltage:2.3-3.6V(typical 3V)

2.Operating Current:80 uA (typical)

3.Static Current:less than 5uA

4.Pedometer Resolution Ratio:1 step

5.Pedometer Error:+/-3% step (uniform speed walking)

6.Operating Temperature:-10℃~50℃

7.Storage Temperature:-10℃~50℃

Features:

1.High Precision 3D Pedometering Calculation

2.Small Size

3.Low Static Current

4.IIC Interface

Applications:

1.3D Pedometer

2.Health Product

3.MP3 Pedometer

4.Pedometering Bracelet

5.Outdoor Handholding Instrument

Note:

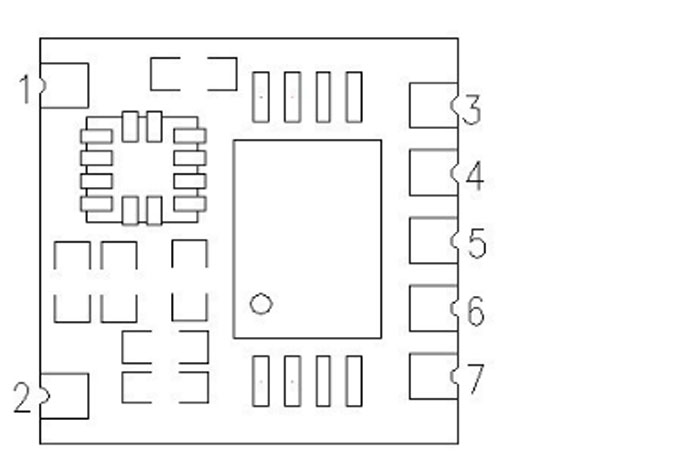

Pin Definition:

1.GND:connect with power ground
2.GND:connect with power ground
3.VCC:connect with power positive(2.3-3.6V)
4.GND:connect with power ground
5.SCK:I2C clock output
6.SDA:I2C data output
7.STEP:pulse output pin
