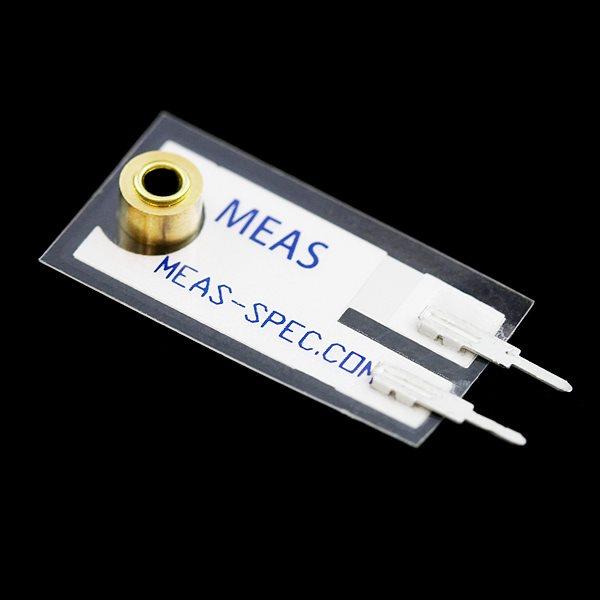

Piezo Vibration Sensor - Large with Mass

Description:

This basic piezo sensor from Measurement Specialties is often used for flex, touch, vibration and shock measurements. A small AC and large voltage (up to +/-90V) is created when the film moves back and forth. A simple resistor should get the voltage down to ADC levels. Can also be used for impact sensing or a flexible switch.

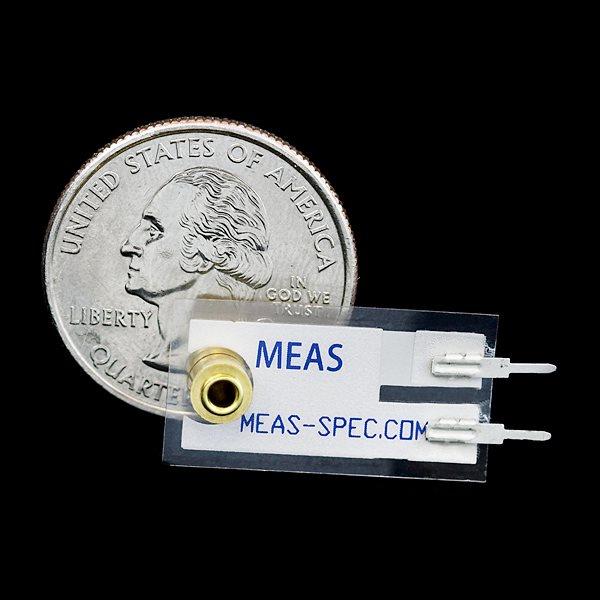

Comes with solderable crimp pins and a mass attached to the tip. This mass increases the sensitivity to motion.

Features:

  • Flexible PVDF Piezo Polymer Film
  • Wide dynamic range
  • Laminated for higher voltage output
  • 0.1" breadboard friendly leads

Documents:

5.5 JD
Quantity
4 in stock
5.5 JD 1+ units
5.22 JD 10+ units
4.95 JD 25+ units
4.68 JD 100+ units
