Description:

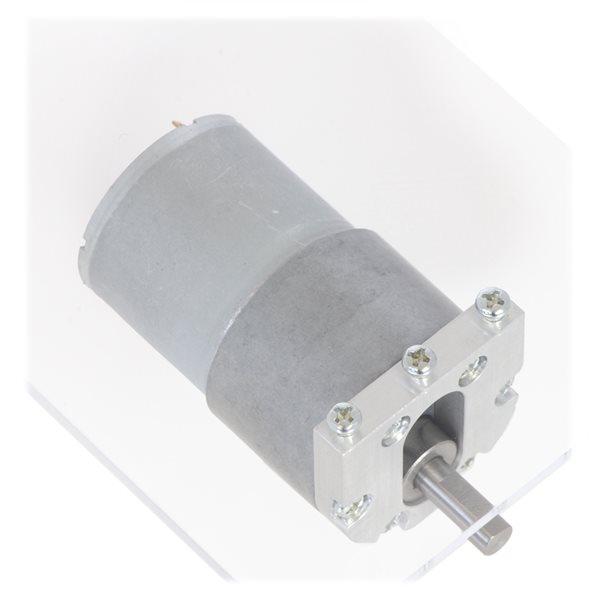

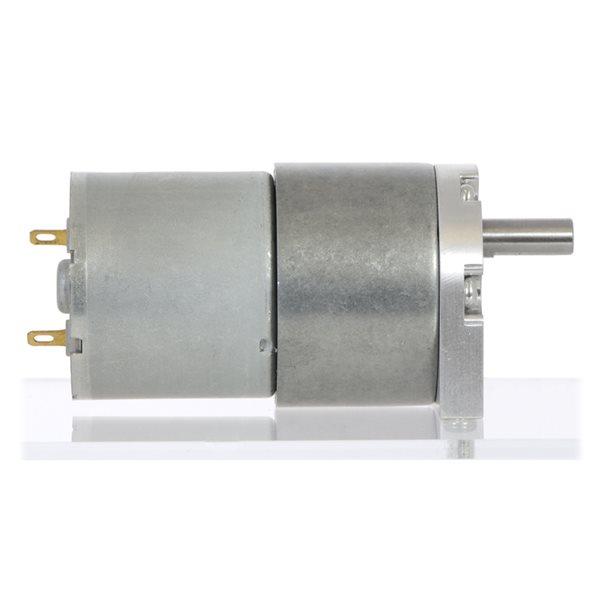

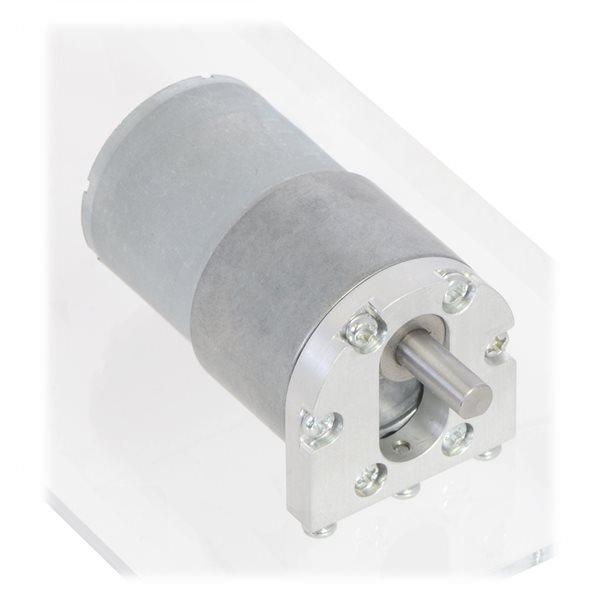

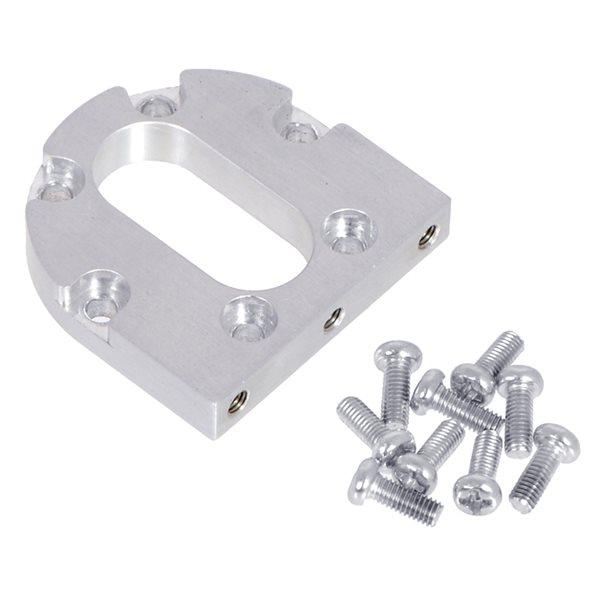

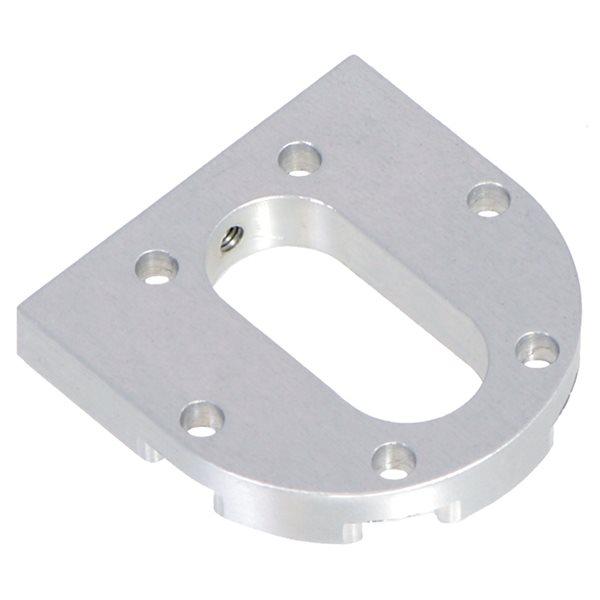

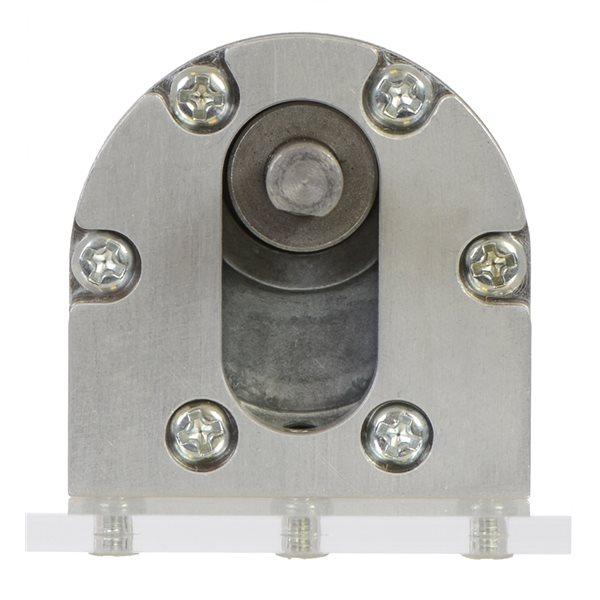

This machined aluminum gearmotor bracket lets you securely mount Pololu’s 37D mm metal gearmotors to your project. The six holes on the bracket face line up with the six mounting holes on the 37D gearbox, and the bracket features three tapped M3 holes on the bottom that can be used to mount it to a surface. The bracket includes nine M3 screws: three for mounting the bracket to a surface and six for mounting it to the gearmotor.

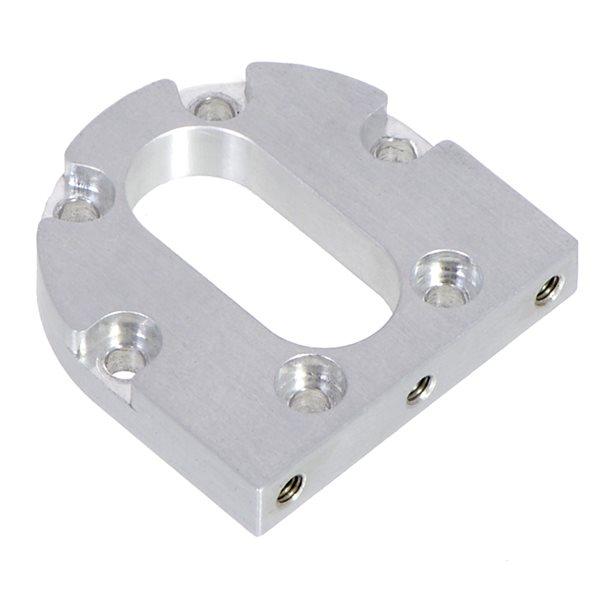

This light and sturdy bracket is specifically designed for Pololu’s 37D mm metal gearmotors. Nine 8 mm M3 screws are included for securing the motor to the bracket and the bracket to a surface. The bracket features three tapped M3 holes along the bottom (spaced 14.8 mm, or 0.58″, apart) that are used to mount it to another object.

We also carry a stamped L-bracket for our 37D mm gearmotors that provides alternate mounting options, but the stamped bracket is not quite as sturdy as this machined bracket and can bend under heavy load.

Documents:

• Pololu machined bracket for 37D mm metal gearmotors mechanical drawing (48k pdf)

  Printable mechanical drawing for the Pololu machined aluminum bracket for 37D mm metal gearmotors.

• 3D model of Pololu Machined Aluminum Bracket for 37D mm Metal Gearmotors (1MB step)
