Description:

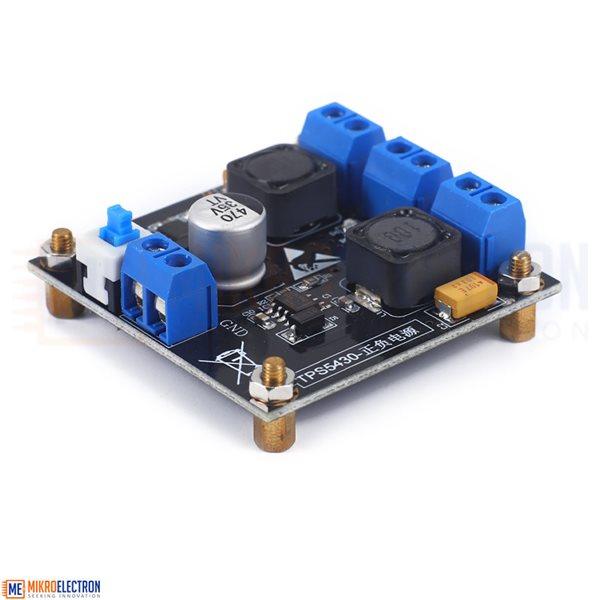

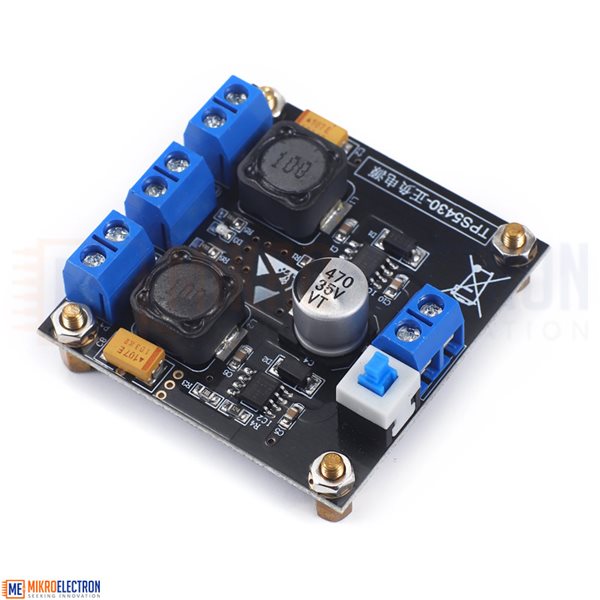

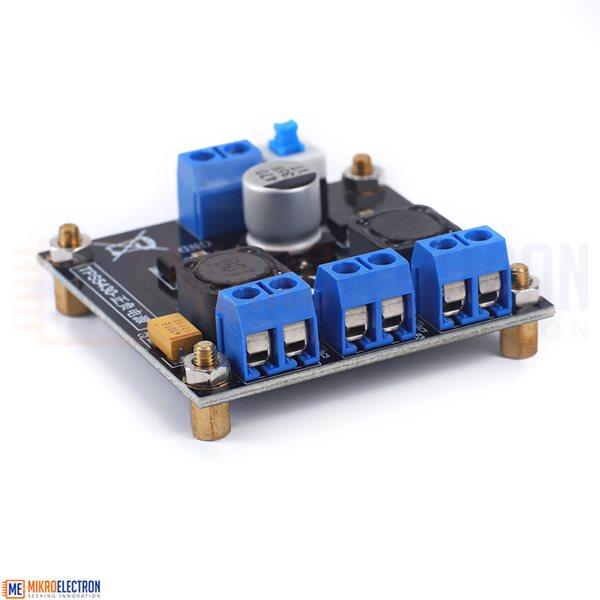

• It is a Dual Output Step Down Power Supply Module with input DC 13V~36V and output DC -12V and +12V.It can provide stable +/-12V output.It can maximum output 2.5A.

  .Low ripple
  .High efficiency
  .Low power consumption
  .Ultra small volume
  .Fixed output voltage
  .Dual voltage output
  .Converter IC:TPS5430
  Input voltage:DC 13V~36V
  .Output voltage:DC -12V and +12V
  .Output power:30W(Need heat sink when more than 10W)
  .Conversion efficiency:>88%
  .Output ripple:.Work frequency:500KHz
  .Stand-by current:10mA
  .Operating Temperature:-20℃~85℃
  .Operating Humidity:5%~95%RH
  .PCB Size:50*50*18mm



Kit include:

1 x TPS5430 DC-DC -12V 12V Dual Buck Step Down Power Supply Module
