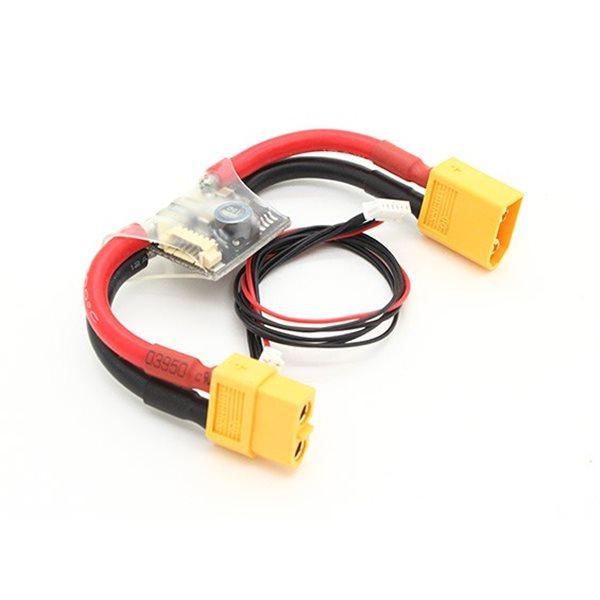

Power Module is a simple way of providing your APM/Arduflyer with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6P cable. The on-board switching regulator outputs 5.3V and a maximum of 3A from up to a 7S LiPo battery.
Note: The Power Module is only designed to power APM/Arduflyer, a RC receiver and accessories (GPS, Radio telemetry). It is not designed to power servos. Use your aircraft's own ESC/BEC for that.
·Max input voltage: 30V
·Max current sensing: 90A
·Voltage and current measurement configured for 5V ADC
·Switching regulator outputs 5.3V and 3A max
·6P molex cable plugs directly to APM/Arduflyer 2.5's 'PM' connector
·Dimension(mm): 25 x 21 x 9
·Weight(g): 17(include all wire)
