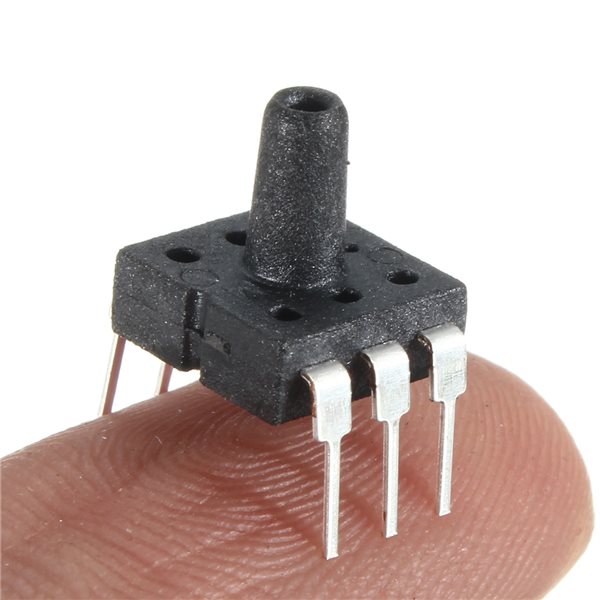

Pressure Sensor MPS20N0040D-D

Kit include:

1 pc

Documents:

DATASHEET

Mikroelectron Code:

Solid, MEMS technology, high reliability
Low cost
Wide monitoring and control media
The application of a wide temperature range
Easy to use, easy to install in OEM equipment
Application areas:
Automotive: tire pressure, car air pump, MAP sensor, diagnostic equipment, automotive sensors.
Industry: Air brake switch, portable pressure gauge, such as digital pressure gauge, environmental monitoring, consumer and sports
Health care: patient monitoring and diagnostic equipment, such as blood pressure monitors, medical instrumentation and monitoring
Range: 40kpa (differential pressure)
Output: mV signal
Supply Voltage: 5VDC or constant current 1Ma
Linear accuracy: 0.25% FS

Pressure range of 580 PSIG, 40KPaG
Max pressure capacity of three times the measuring range
Working supply 5 VDC,
Input impedance of 4 - 6 KΩ
Output impedance of 4 - 6 KΩ
Operating temperature -40 - 85 ° C -40 ° F - +185 ° F
Storage Temperature -40 - 125 ° C -40 ° the F - +257 ° F
Accessible media, clean, dry, non-corrosive gases
Bias voltage ± 25 mV
Full-scale output voltage 50 - 100 mV
Bridge Resistance to 4 - 6 KΩ
Linearity ± 0.3% F.S.
Hysteresis ± 0.7% F.S.
Bias Temperature coefficient ± 0.08% of F.S. / °c


6 JD
Quantity
7 in stock
6 JD 1+ units
0.95 JD 10+ units
0.9 JD 25+ units
0.85 JD 100+ units
