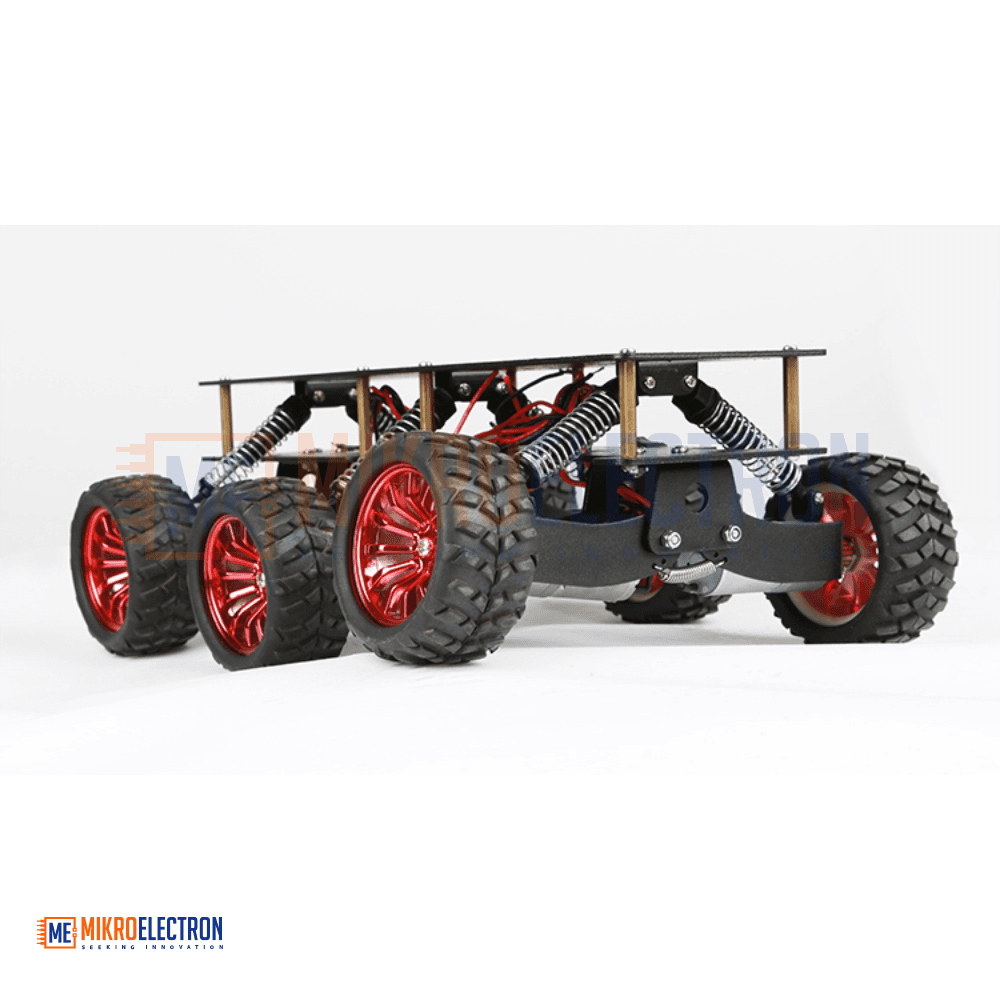

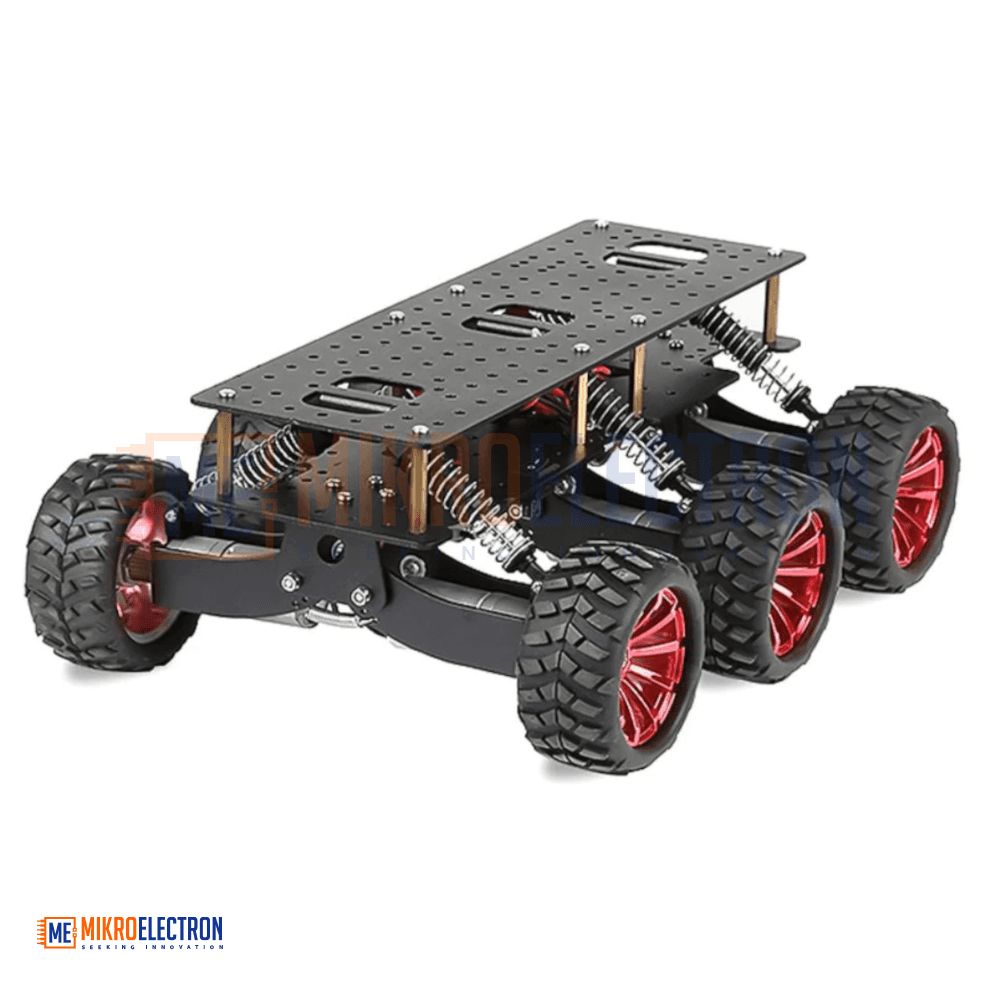

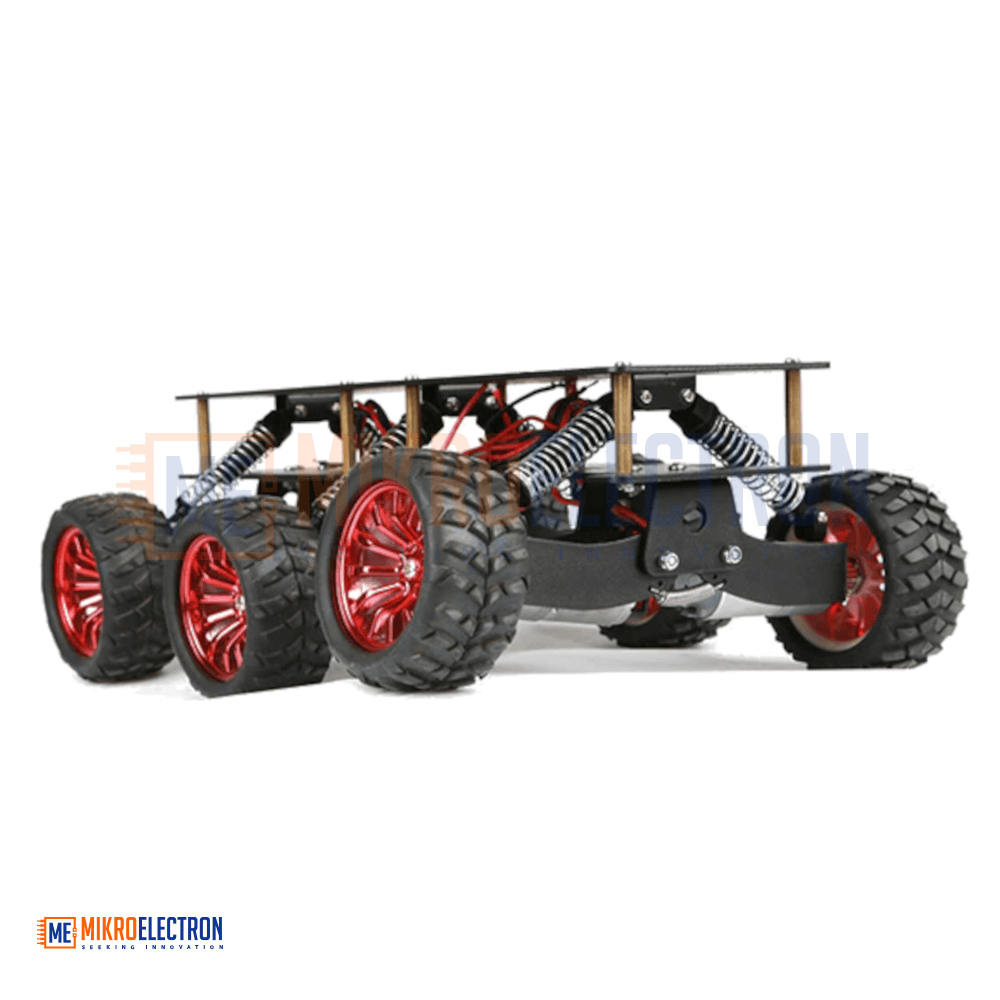

ROBOT Black 6WD Search Rescue Platform Smart Car Chassis Damping Off-Road Climbing WIFI Car Rover

Description:

Operating voltage: 12V

Maximum load: 6kg

Rated Current: 350mA * 6

Motor original speed: 17000 rpm

Output shaft speed: 500 rpm

Nominal torque: 5 kg / cm

Presenting you a high-speed DC motor with 1: 34 all-metal gearbox which make the car have strong off-road performance. It has a seismic design with 6 hydraulic spring shock absorbers fixed to the upper body to give the platform better roadway capability, especially for some complex bumpy roads.

6WD Mobile platforms can be installed with different types of boards or controllers, such as Arduino or raspberry pie. The user can install any kind, or additional extension of other functions, such as the installation of a manipulator.

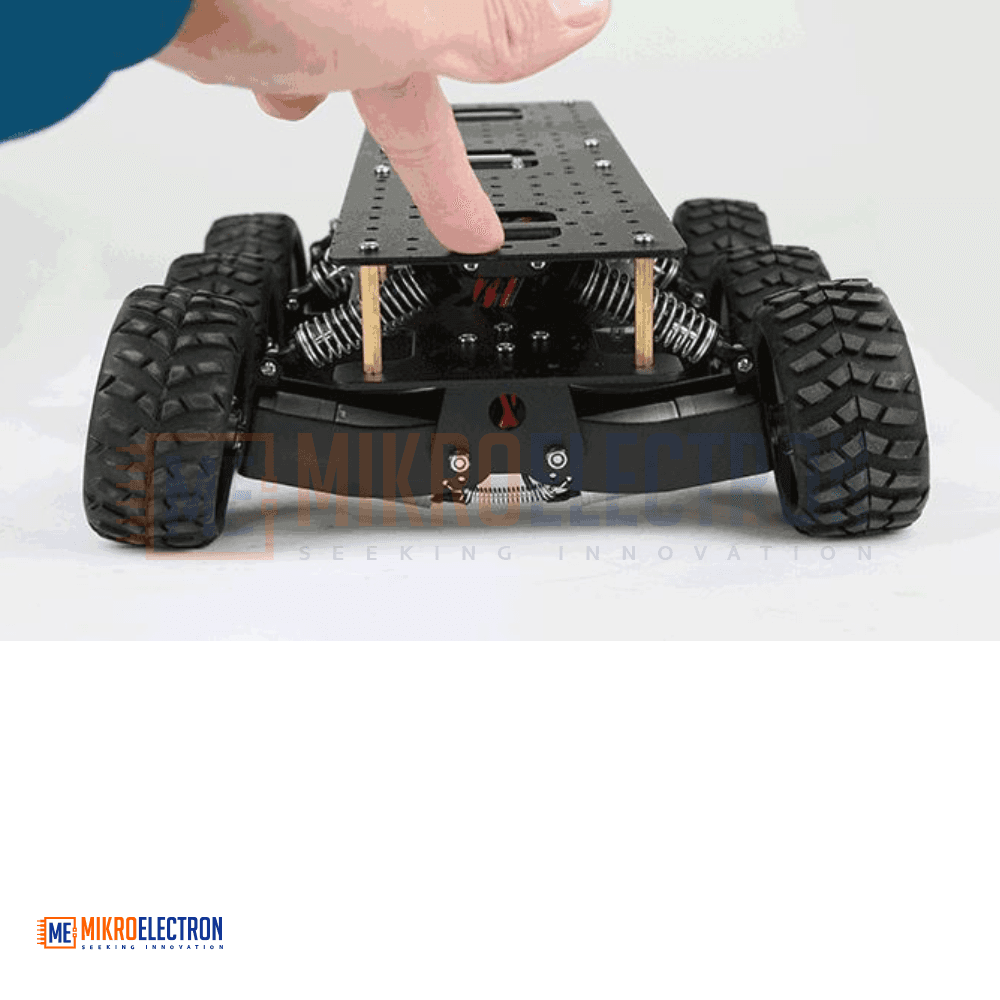

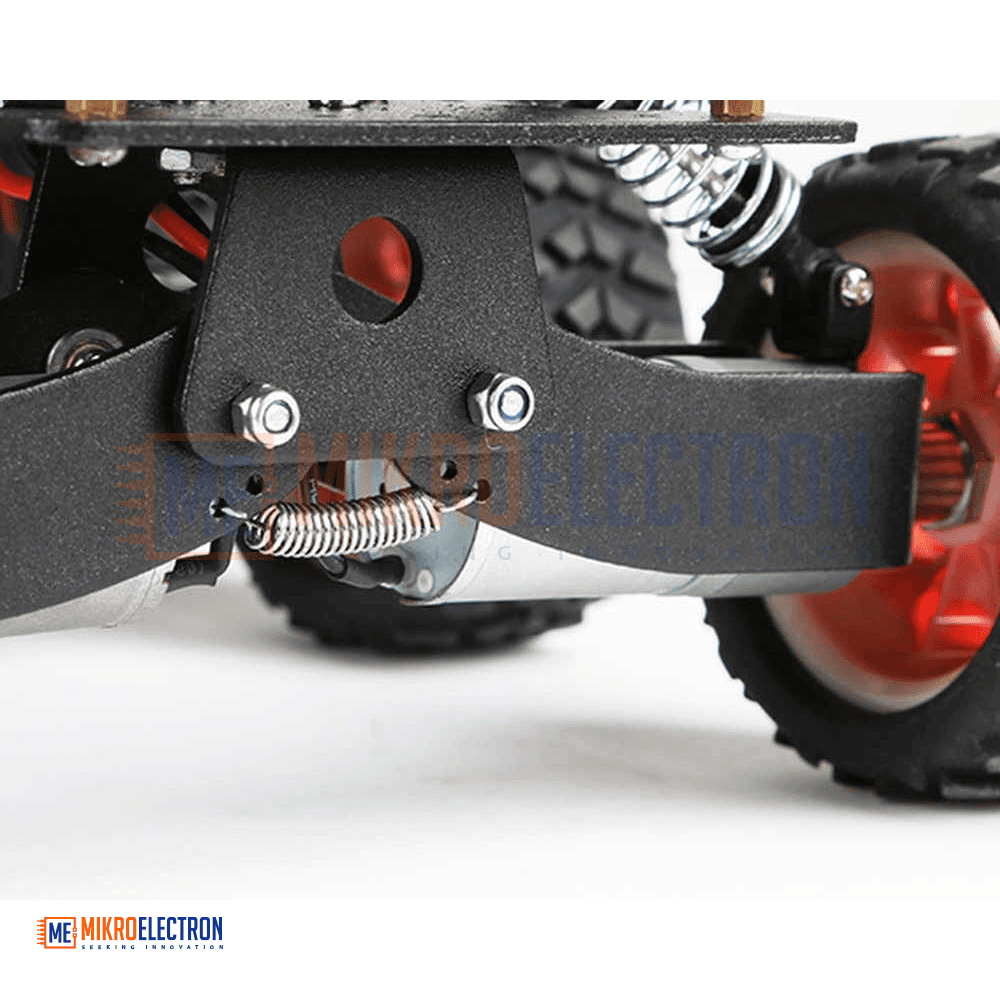

Shock soft and hard adjustable by the tension spring

6 hydraulic spring shock absorbers

Uneven road surface, damping access will be adaptive the road

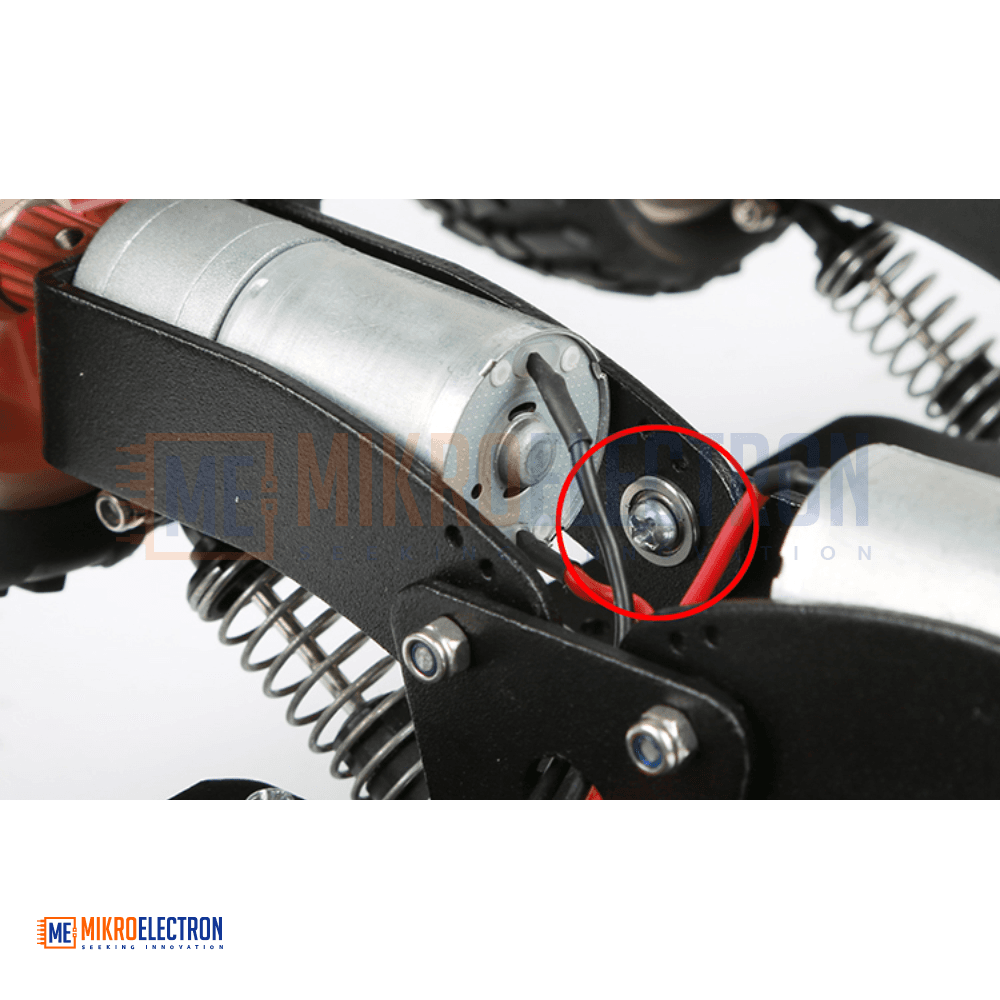

The use of 12 flanged bearings on the link reduces frictional heat drag


Features:

  1. All metal gearbox
  2. 6 hydraulic spring shock absorbers
  3. Shock soft and hard adjustable by the tension spring
  4. Uneven road surface, damping access will be adaptive the road
  5. Reduced frictional heat drag
  6. Powerful expansion capabilities

Features:

Operating voltage

12V

Maximum load

6kg

Rated Current

350mA * 6

Motor original speed

17000 rpm

Output shaft speed

500 rpm

Nominal torque

5 kg / cm

Length (mm)

310

Width (mm)

245

Height (mm)

45

Weight (gm)

1665

Shipment Weight

1.9 kg

Shipment Dimensions

32 × 25 × 5 cm

130 JD
150 JD
Quantity
Out of stock
