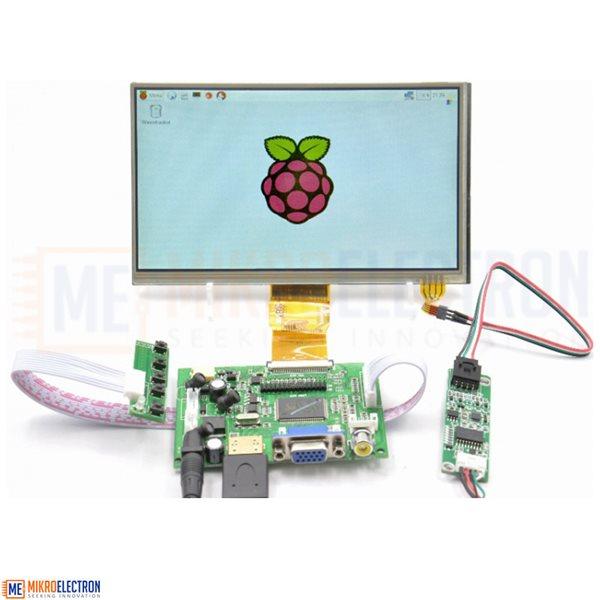

Raspberry Pi 7 inch 1024x600 LCD Touch Monitor + Driver Board Controller HDMI


This 7 inch HDMI TFT LCD display is especially designed for Raspberry Pi. With two driver boards, all you need is to plug and play. Multiple languages are supported. You may apply them to different devices such as mobile DVD, digital photo frames, car systems, multimedia applications and other audiovisual systems.

Technical Support:



Display size: 7 inch

Touch screen: support

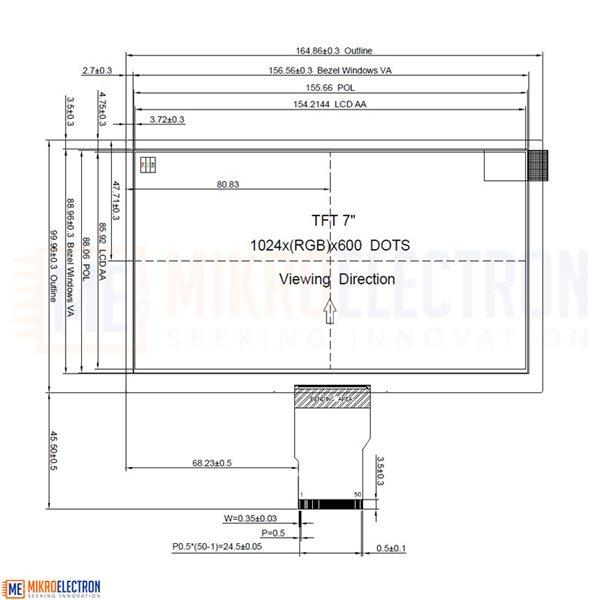

Dimensions: 165 (W) × 100 (H) × 5 (D) mm

Viewing area: 154.08 (H) × 85.92 (V)

Resolution: 1024 × 3 (RGB) ×600

Point distance: 0.05 (W) × 0.15 (H) mm

Viewing angle: L70 ° R70 ° U50 ° D60

Panel type: TFT

Display color: 262K

Contrast ratio: 500: 1

Brightness: 220cd / m2

Interface type: Digital

Number of connections: 50 PIN Digital (TTL) TCON

Backlight: LED

Operating voltage: 5V (current requirement 1A-2A), for example car power need to add a 5V regulator

Rated power: 6-7W

Signal input: AV + VGA + HDMI (HDMI 1.2)

Support 5V DC voltage input, you can use USB, or power bank, but the positive and negative can not be reversed, to avoid damage the circuit board

Kit include:

1 x 7-inch LCD screen

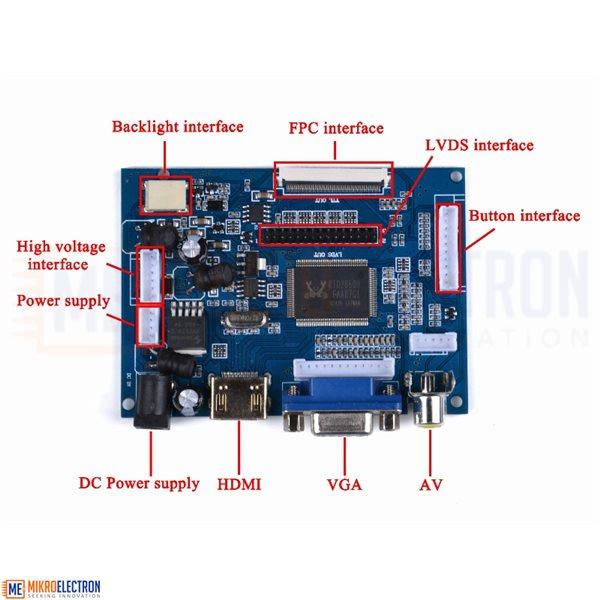

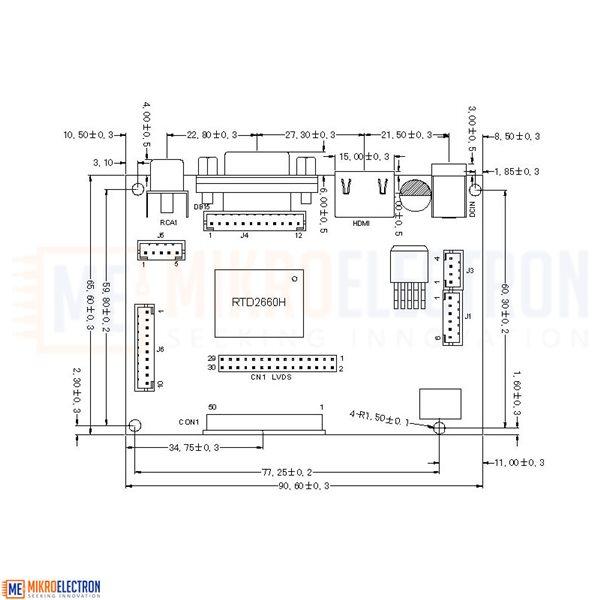

1 x LCD Driver board

1 x White cable (connected to the key board)

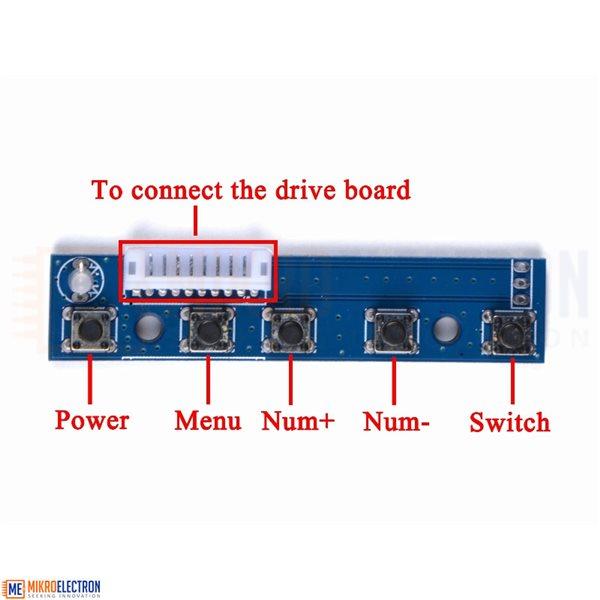

1 x Long Green Key Board

1 x USB to DC5.5 power line

65 JD
In stock
