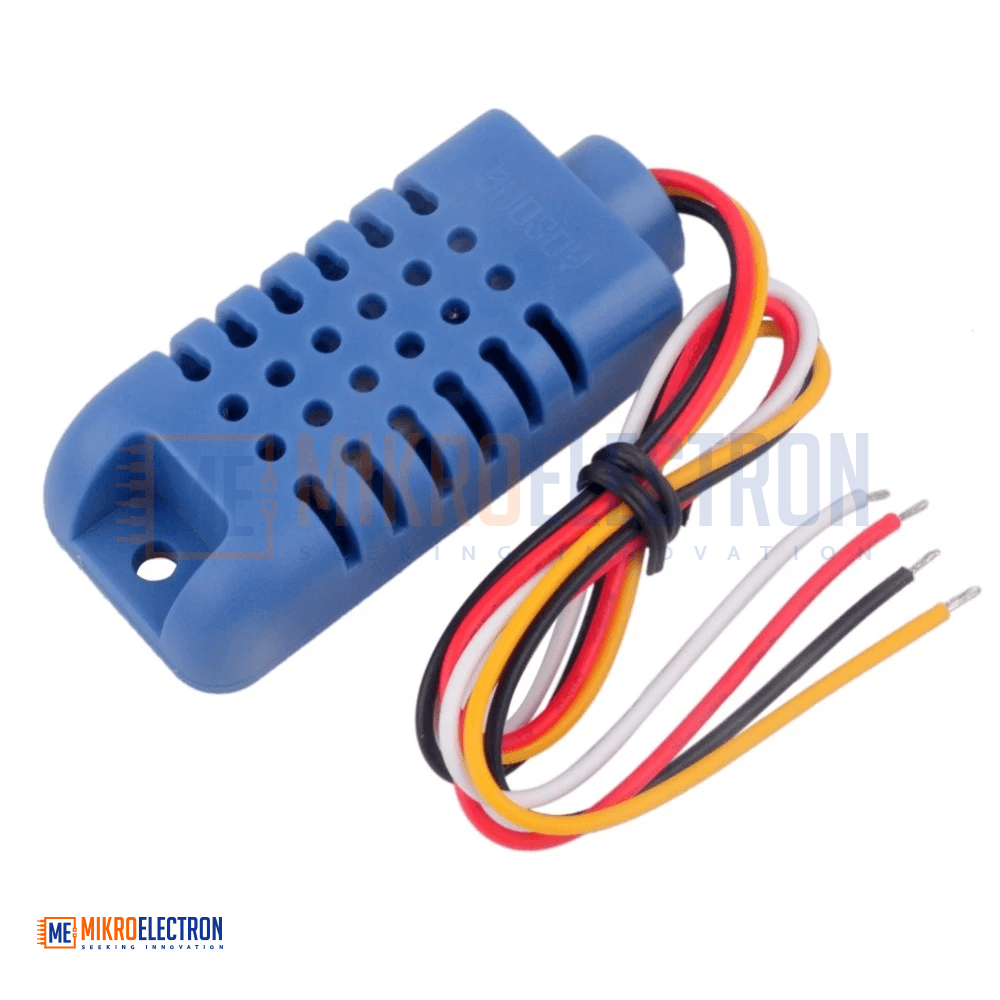

Resistive Temperature & Humidity Sensor AMT1001

Description:

AMT1001 capacitive humidity sensing temperature and humiditythe module relative humidity sensor circuit integrated product modules supply voltage to DC voltagethe voltage output Zhong line relative humiditythe module has high accuracyhigh reliabilityconsistencyand withtemperature compensation to ensure long-term stabilityease of use and low price and so onespecially suitable for more demanding on the quality and cost requirements of enterprise.

Application

HVAChumidifiersdehumidifierscommunicationatmospheric environmental monitoringindustrial process controlagriculturemeasuring instruments and other applications.

features

Low power consumptionsmall sizewith temperature compensationsingle-chip calibration linear outputease of uselow costfully interchangeableultra-long distance signal transmissionprecise calibration.


Relvant humidity

0

10

20

30

40

50

60

70

80

90

100

Voltage output

0

0.3

0.6

0.9

1.2

1.5

1.8

2.1

2.4

2.7

3.0


Temperature dependencies: ± 2% RH (Vin = 4.5-6V DC10-90% RH -20 to 80 ° C range)Temperature compensation of the full-scalefull-scale single-chip calibration outputoutput impedance: 5kΩ

Standard temperature (conditions: Vin = 5V) output resistance (Free debug):


Relvant humidity

0

10

20

30

40

50

60

70

80

resistance (kΩ)

27.9

18.22

12.12

8.31

5.8

4.12

3

2.21

1.66


Temperature dependence (reference): ± 2% RH (Vin = 5V DC10-90% RH -20 to 80 ° C range)

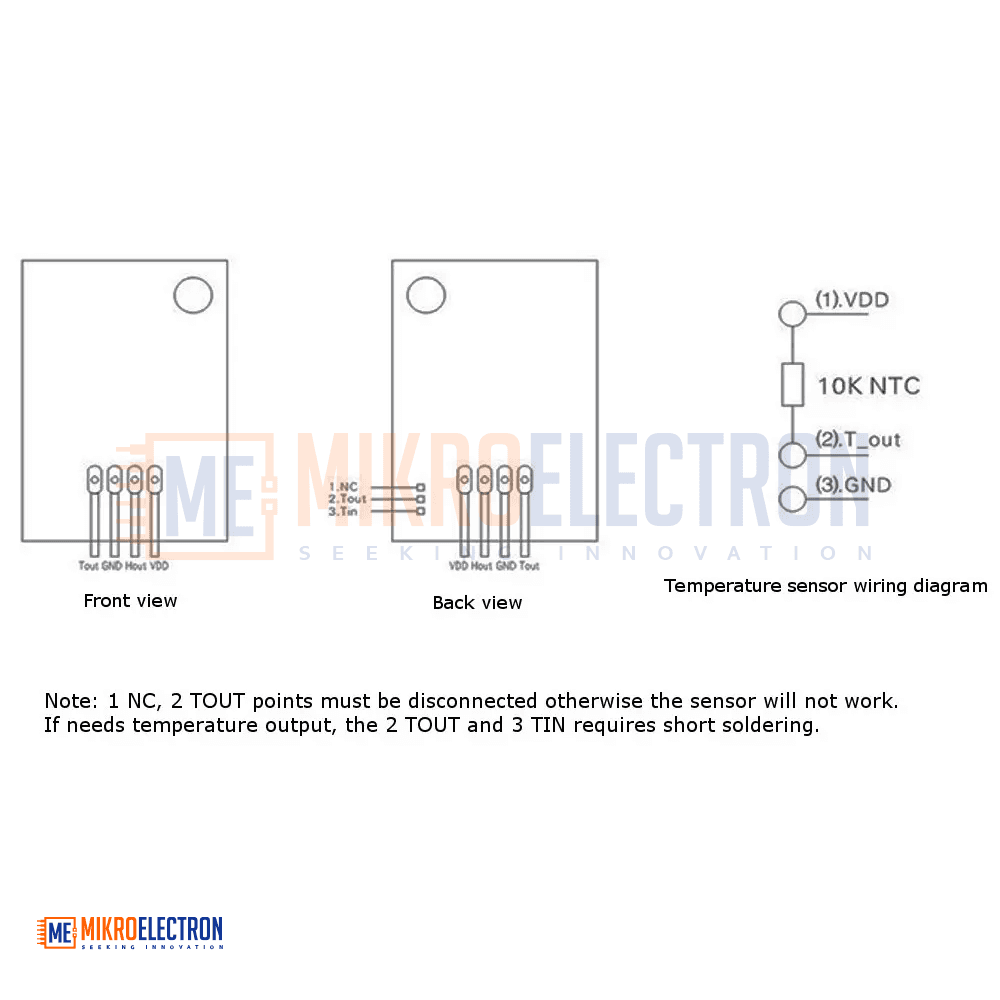

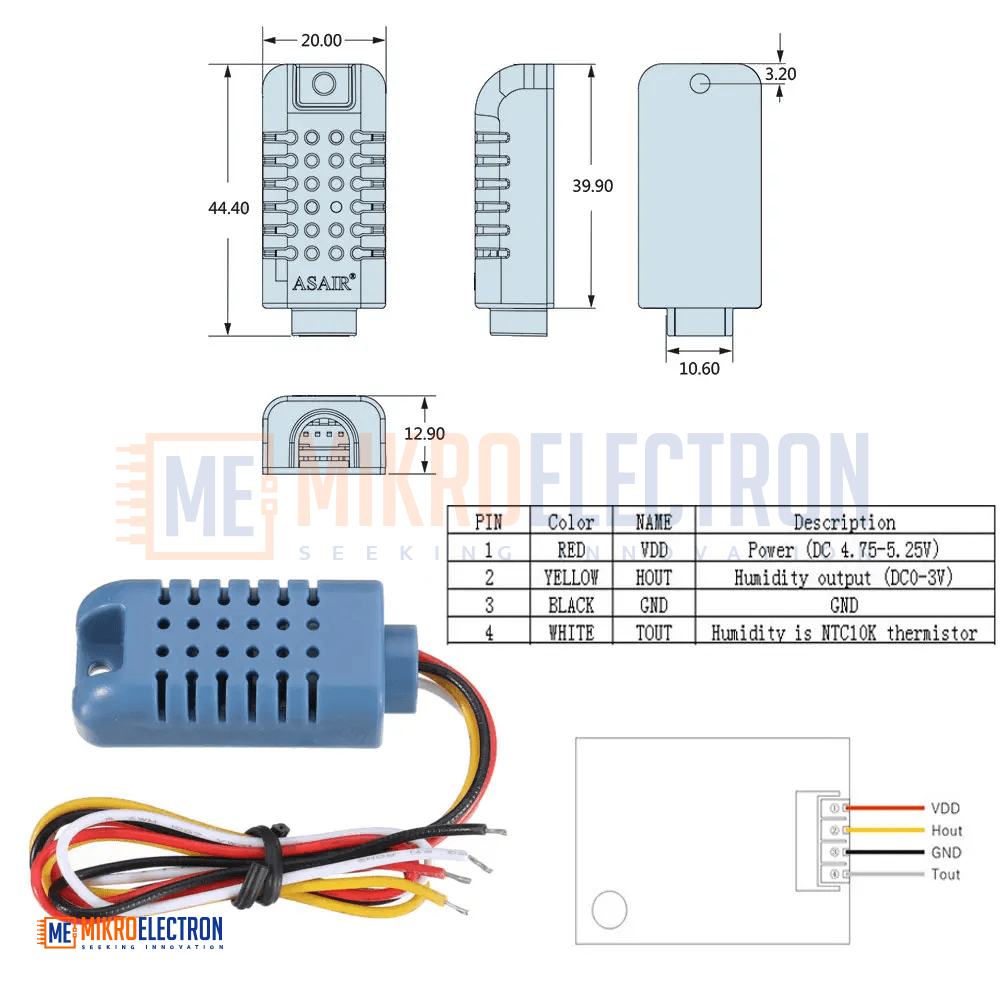

Wiring

1.   Power

2.   Humidity voltage output

3.   GND

4.   Temperature voltage output

Amt 1001 wiring.png


Buy amt1001 Resistive Temperature & Humidity Sensor for sale online from mikroelectron.com.Resistive Temperature & Humidity Sensor

Features:

  • Supply voltage (Vin): DC 4.75 ~ 5.25V
  • Current consumption: about 2mA
  • Operating temperature range: 0 ~ 60 ?
  • Temperature detection range: 0 ~ 60 ?
  • To use Humidity range: 20 ~ 95% RH
  • The humidity detection range: 20 ~ 90% RH
  • Storage temperature range: 0 ~ 60 ?
  • Save humidity range: 95% RH (non-condensing)
  • The humidity detection accuracy: ± 5% RH (conditions: at25 ?60% RH)
  • Temperature detection accuracy: ± 0.5 ° C (conditions: at25 ?)
  • Standard the humidity output voltage (Free debug): (condition: at25 ?Vin = 5V)
