Description:

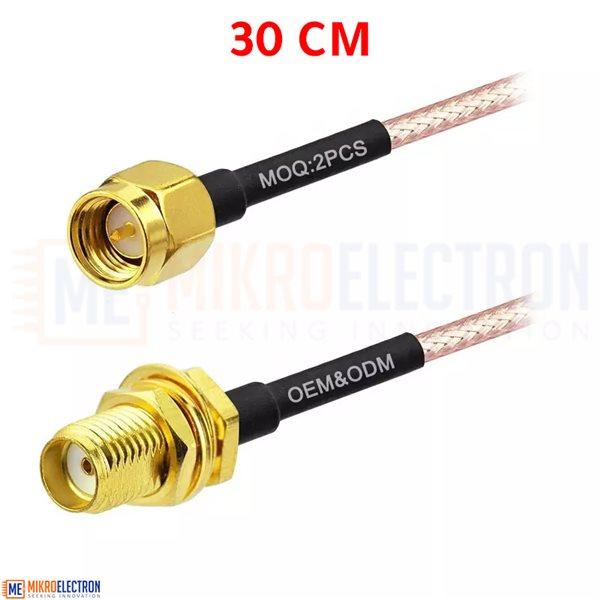

RF RG178 SMA Male to SMA Female Nut Bulkhead Crimp Antenna Low Loss Coaxial Cable – 0.3 Meter Cable Length

RG178 Coaxial Cable Pigtail WLAN Network RF Antenna – 50CM This SMA male to female Pigtail RF antenna is used widely for router, booster, and WLAN Wi-Fi Antenna conversion. The antenna adapter can connect your phone to the antenna to provide better reception in no signal areas. High-frequency low-loss antenna extension cord. RG178 military standard Teflon silver plated wire feeder with acid corrosion resistant high temperature and other characteristics. This product knows as Antenna SMA Connector, RG178 Coaxial Cable, RG178 Coaxial Cable With SMA Connector, RG178 Coaxial Cable with Male SMA Connector,RG178 Antenna Extension RP-SMA Male to Female Connector Pigtail Cable, RG178 RP-SMA male to female wifi antenna extension cable, RG316 RP-SMA male to female Wi-Fi antenna extension cable, Antenna Extension Cable SMA Female to SMA Male Antennae Adapter

Application:

RF Antenna

Wi-Fi Antenna etc.

Datasheet: RF RG178

Features:

Manufacturer: SHARVI TECHNOLOGIES

Manufacturer Part No: ST2106CO3855

Metal: Copper

Impedance: 50 Ohm

Connector Type: SMA

Gender: Male to Female

Frequency Range: DC- 3GHz

Nominal capacitance conductor to shield: 95 pF/m

Nominal velocity of propagation: 69.5%

Voltage rating : DC 1.0 kVdc, RMS 0.6 kVrms

Temperature range-storage/operation: -55°C to +200°C

Temperature range-installation: 5°C to +50°C

High-Quality SMA Connectors On Both Ends

High efficiency

Cable length: 0.3 Meter

Kit include:

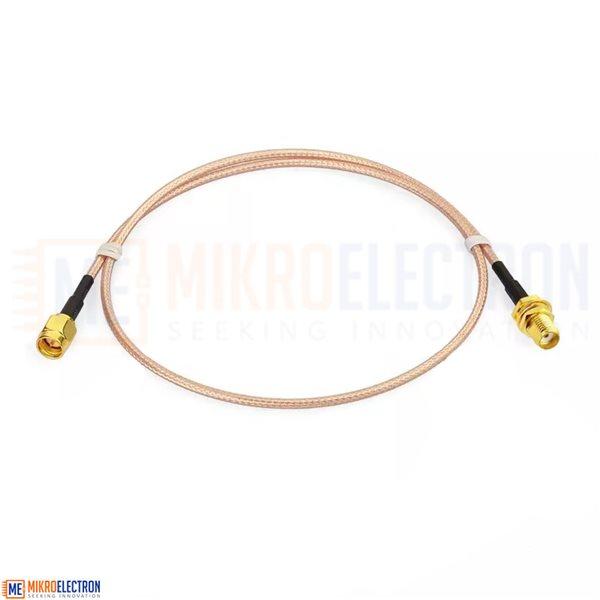

1 x SMA Male to Female Pigtail WLAN Network RF Antenna RG316 (30cm)

Documents:

Datasheet: RF RG178
