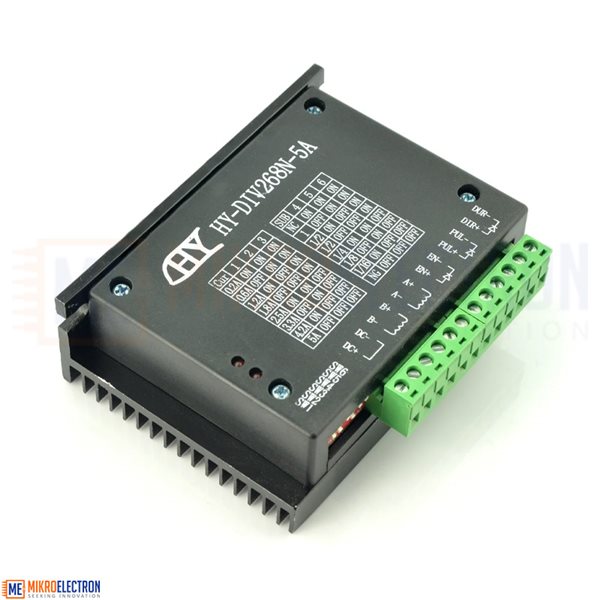

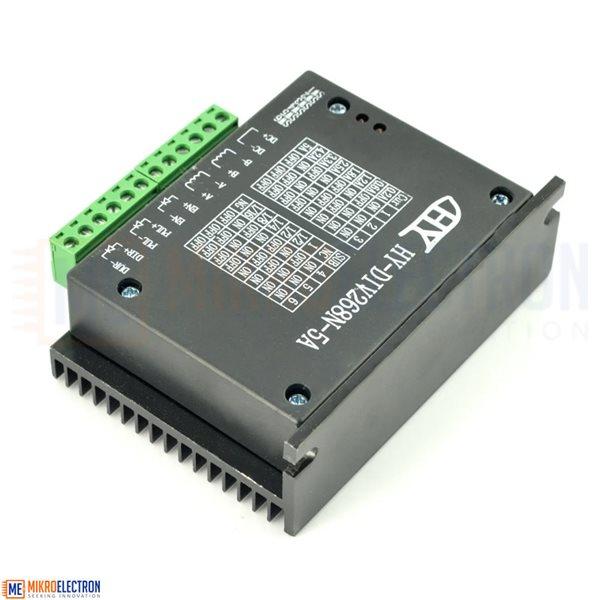

Stepper Motor Driver HY-DIV268N-5A in case - 48V 5A
Description:
Stepper motor driver based on the system TB6600 allows you to control the motor with a current consumption of up to 5 A (range is adjustable from 0.2 A to 5 A) on the coil with the voltage from 12 V to 48 V. It has six control modes: full-step, noncircular 1/2, 1/2, 1/4, 1/8 and 1/16.

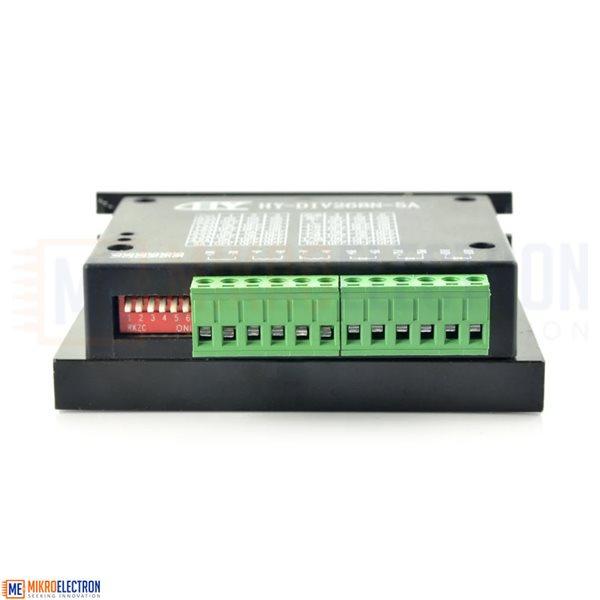

The system has the leads with screw connectors that provide connection of wires with screwdriver.
|

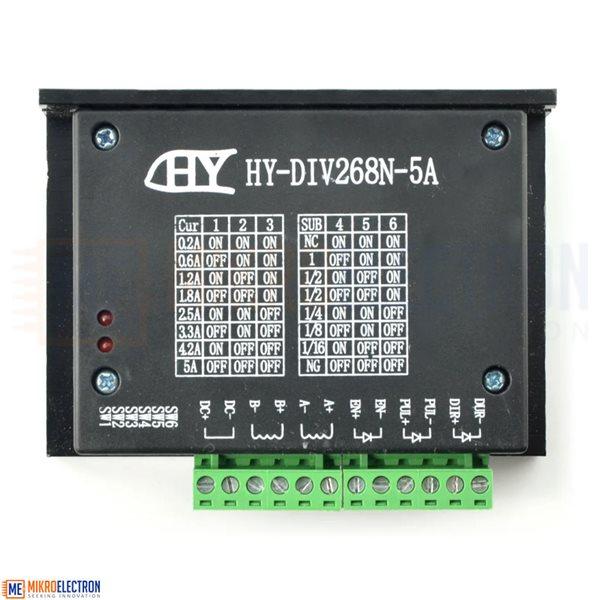

PIN |
DESCRIPTION |
|
DC+ DC- |
Supply voltage from 12 V to 48 V. |
|
B+ B- |
One coil of the motor. |
|
A+ A- |
The second coil of the motor. |
|
EN+ An- |
Starting the driver. |
|
PUL+ PUL- |
Pulse inputs to manage steps. One pulse causes one step of
the motor in the direction selected by providing the appropriate logic
state on the pin DIR. |
|
DIR+ DIR- |
The choice of direction of rotation. |
Note:
Features:
- Supply voltage: from 12 V to 48 V
- Continuous current on the coil: adjustable from 0.2 A to 5 A
- Optically isolated inputs
- Protections:
- From too high voltage
- From Under voltage
- From too much current
- From short circuit
- Resolution: 1, noncircular 1/2, 1/2, 1/4, 1/8 and 1/16 step
- Working temperature: from -10 °C to 45 °C

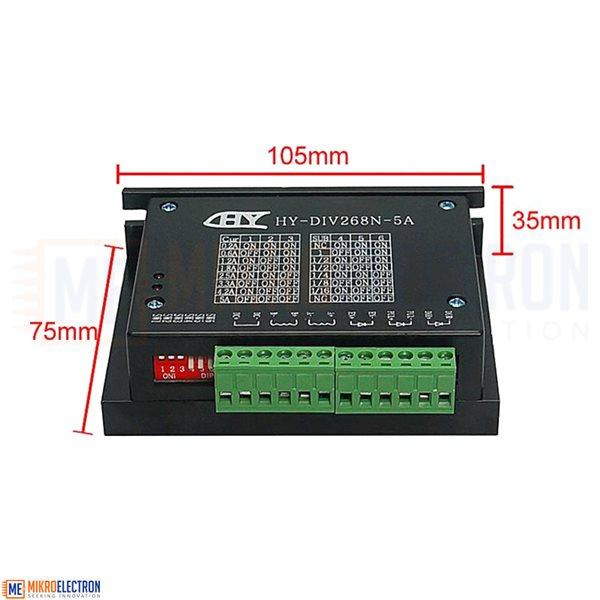

- Dimensions: 116 x 86 x 33 mm (with connectors)
- Weight: 220 g
