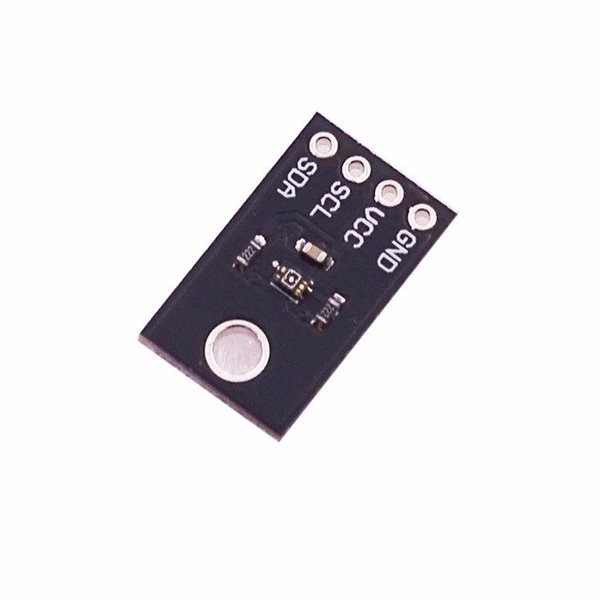

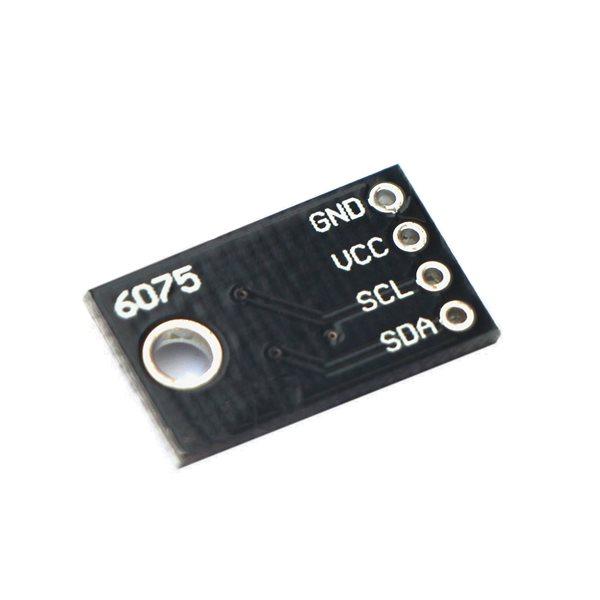

UV Sensor - VEML6075 SPX-14748

Description:

Need to apply some sunscreen? SPF 15? SPF 50? SPF 5000? It’s time to consult the VEML6075 UV sensor!

The VEML6075 can detect the intensity of UVA (~365nm) and UVB (~330nm) waves. With a quick calculation, those values can be used to generate a standardized UV index – a value from 0 to 11+ which indicates the relative strength of UV irradiance. Seeing a UVI above 6-7? Find some shade, or slather on that sun screen!

The VEML6075 features a simple I2C interface. This board requires no voltage translation, no figuring out which pin is SDA or SCL; just plug it in and go!

Check out the documents section for a simple Arduino library – there’s example code to configure the sensor, read its UVA and UVB outputs, and generate a UV index output. Stay safe out there this summer!

Features:

  • UVA and UVB sensing
  • Calculated UV index reading
  • I2C interface
  • VEML6075 address: 0x10
  • Operating voltage: 1.7 to 3.6V

Documents:

16 JD
Quantity
3 in stock
16 JD 1+ units
15.2 JD 10+ units
14.4 JD 25+ units
13.6 JD 100+ units
