Description:

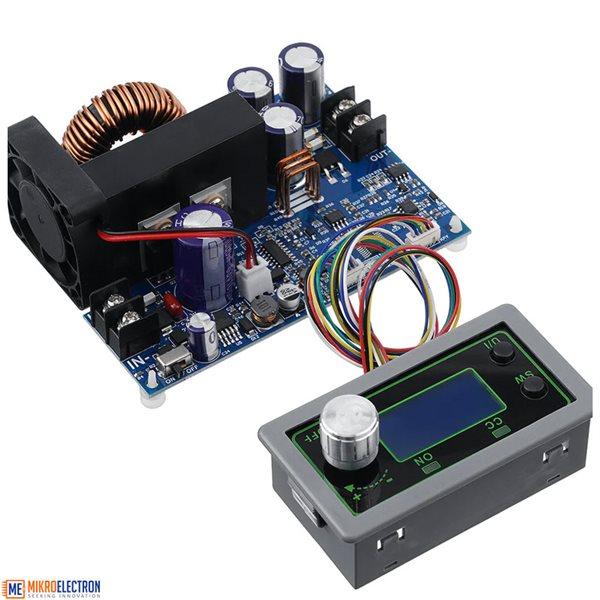

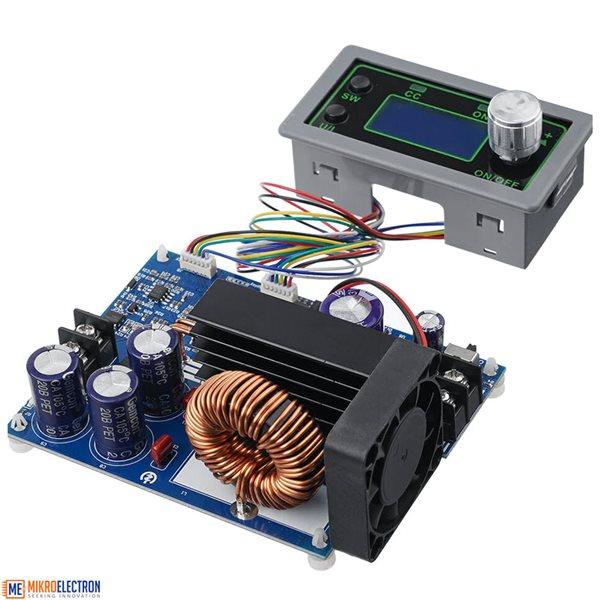

model:WZ5005L

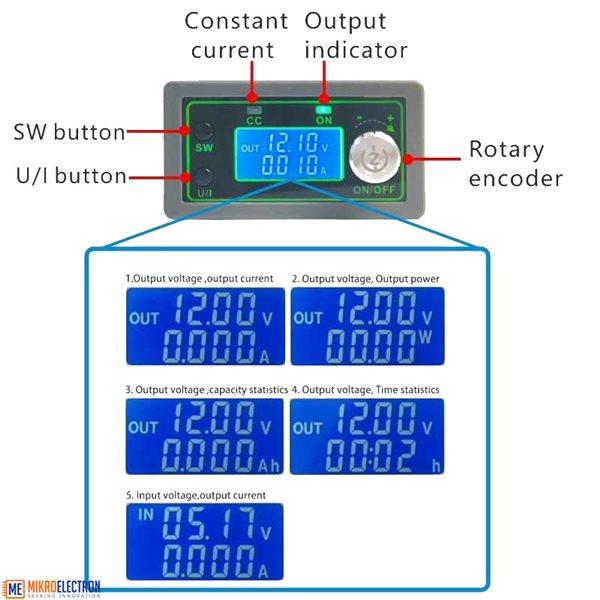

display: LCD

Input voltage range: 6 - 55.00V

Input voltage resolution: 0.01V

Output voltage range: 0 - 50.00V

Output voltage resolution: 0.01V

Output current range: 0 - 20.00A

Output current resolution: 0.01A

Output power range: 0 - 1000W

Input voltage accuracy: +/-(1%+5)

Output voltage accuracy: +/-(0.3%+5)

Output current accuracy: +/-(0.5%+5)

Typical value of output ripple: 150mV Peak value

Normal operating temperature range: -10Celsius-40Celsius

Capacity measurement range: 0-999.9AH

Statistical error of capacity energy: +/-2%

Statistical time range: 0-100 hour

Depressurization mode: differential pressure greater than 0.05%+1V

Soft start: Yes

Protection mechanism:

Input under voltage protection (5.8-50v adjustable, default 5.8v)

Output overvoltage protection (0-51.00v adjustable, default 51V)

Output over-current protection (0-20.10a adjustable, default 20.10a)

Timeout protection (0 - 100h adjustable, off by default)

Over capacity protection (0 - 999.9ah adjustable, off by default)

Features:

2. Numerical control adjustment, precise and fast, step-down output, output voltage 0-50.00V arbitrarily adjusted, limit current 0-20.00A arbitrarily adjusted;

3. The output end does not burn when it is poured backwards;

4. The module can be set to turn on/off by default;

5. has a variety of software protection mechanisms, and the protection threshold is adjustable. After the module's working parameters exceed the protection threshold, the output will be automatically turned off;

6. Using synchronous rectification technology, high conversion efficiency: efficiency is above 90%;

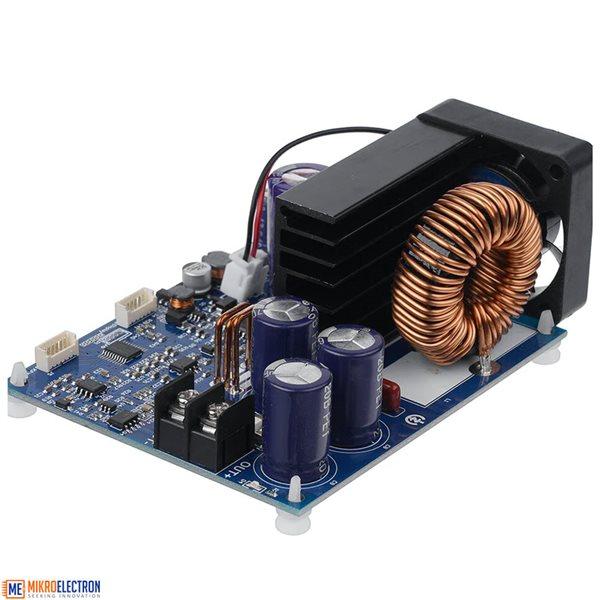

7. Enlarge the heat sink and install a fan to enhance heat dissipation.
