Waveshare 4 inch IPS LCD Resistance Touch screen adapting to HDMI interface 800x480

Description:

800x480, 4inch Resistive Touch Screen LCD IPS Display, HDMI interface, IPS Screen, Designed for Raspberry Pi


Features:

4 inch 800x480 high hardware resolution Touch Screen , a good solution for those seeking for a small size with bigger resolution display.

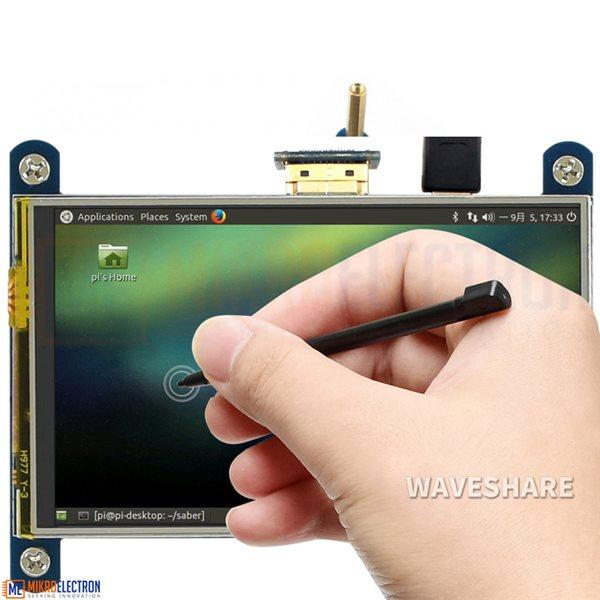

Resistive touch control, with a touch pen, easy to use.

IPS technology, high quality and perfect displaying from very wide viewing angle.

Not only can be used with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable), but also works as a computer HDMI monitor. When working as a computer monitor ,touch panel is unavailable and HDMI cable is required.

Drivers provided to work with a lot of Controller.

Backlight can be turned off to lower power consumption.


Note:

The touch of the LCD can be driven in two ways:

Method 1: Install driver manually;

Method 2: Using ready-to-use Image

The images, drivers , user manual and software are provided , please contact us via Amazon message to get .


FAQ

1.It seems not to work as a computer monitor for a Windows PC, right?

This LCD is used for portrait display. You can set the orientation on Windows: desktop right click --> display settings --> orientation: portrait

2.How could I disable the rainbow screen?

Please add the following command to /boot/config.txt

dusable_splash=1



Note:

Online development resources are provided, please contact with us to get if needed.


Kit include:

1 x 4 inch HDMI LCD

1 x HDMI connector

1 x Touch pen

1 x RPi screws pack (4pcs)

1 x Quick start sheet


49 JD
Quantity
In stock
