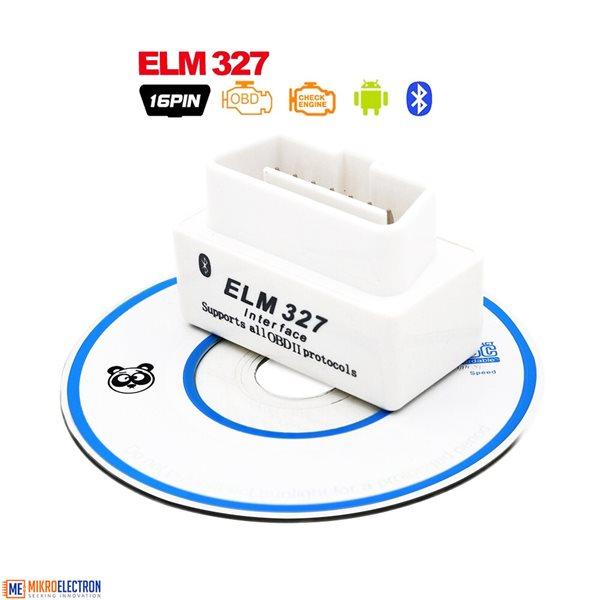

White V2.1 ELM327 OBD2 Bluetooth Interface AutoCar Scanner

Description:

Useful SUPER MINI ELM327 Bluetooth OBD2 V2.1 Scanner Bluetooth White Smart Car Diagnostic tool Cheapest ELM 327 Wireless Scan Tool



ATTENTION

1. It only works with car (can not support Diesel or Truck).

2. It only works with Android 4.0-Android 4.4 version.

3. Please connect the item to your phone through Bluetooth OBD II option.

4. ELM327 can do MOST of the OBDII vehicles, but it CAN NOT do all models.

5. It CAN NOT work on IOS, if you need an item which work on IOS, pls buy our WIFI ELM327

6. If the CD is broken, pls download the software from : 360diag.net . Sorry for the inconvenience to you



Highlights

It supports almost OBD-II protocols.

It is the latest version 2.1

Bluetooth connection, no Batteries, Cables, or Switches.

Bluetooth 5v ~ 10 meters

Retrieve Fault Codes (DTCs) and clear Check Engine lights.

Can also be used with a PC with a Bluetooth Card.



Features

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

Clear trouble codes and turn off the MIL ("Check Engine" light)

Set the maximum number of responses to obtain

Remove spaces from ECU responses (to speed data transmission)

Store a unique identifier in EEPROM

Set the CAN mask and filter with one command

Easily switch between variable and fixed CAN message lengths

Send CAN remote frames (RTRs)



Display current sensor data, including:

      Engine RPM

      Calculated Load Value

      Coolant Temperature

      Fuel System Status

      Vehicle Speed

      Short Term Fuel Trim

      Long Term Fuel Trim

      Intake Manifold Pressure

      Timing Advance

      Intake Air Temperature

      Air Flow Rate

      Absolute Throttle Position

      Oxygen sensor voltages/associated short term fuel trims

      Fuel System status

      Fuel Pressure

      Many others...



Our scanner is suitable to all car brands, but not all car models. Before you make order, please check whether your car model has one of the following protocols.

Multi-Protocol Support:



1. ISO9141-2(5 baud init, 10.4Kbaud)

2. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

3. ISO14230-4 KWP (fast init, 10.4 Kbaud)

4. ISO15765-4 CAN (11bit ID, 500 Kbaud)

5. ISO15765-4 CAN (29bit ID, 500 Kbaud)

6. ISO15765-4 CAN (11bit ID, 250 Kbaud)

7. ISO15765-4 CAN (29bit ID, 250 Kbaud)

A.SAE J1939 CAN (29bit ID, 250*Kbaud)

B.USER1 CAN (11*bit ID, 125*Kbaud)

C.USER2 CAN (11*bit ID, 50*kbaud)

*default settings (user adjustable)

Vehicle Coverage

Works on almost OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles

for Alfa Romeo/ for Audi / for Bentley/ for BMW/ for Cadillac/ for Chevrolet/ for Chrysler / for Citroen/ for Daewoo/ for Fiat/ for Ford/ for G-M/ for Honda / for Hyundai/ for Isuzu/ for Jaguar/ for Jeep/ for Kia/ for LandRover/ for Lexus/ for Mazda/ for Mercury/ for Mini/ for Nissan/ for Mitsubishi/ for Opel/ for Peugeot/ for Posch/ for Renault/ for Rover/ for Saab/ for Seat/ for Skoda/ for Toyt/ for Vauxhall/ for Volvo/ for VW

For your information

For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.



Software Included:

Scantool_net113win (Full Version)

EasyOBDII V2.2 (Free Version)

OBD2Spy (Demo Version)

Scan Master-ELM (Demo Version)

wOBDCRAZY  (Demo Version)



This hardware can match much other software still! But most of them are not free!

Works for Windows98/ME/2000/XP/Vista & Win 7!

This tool does not match abs and airbag system!

Bluetooth pair code: 1234


Kit include:

1 x EOBD/OBD2 Bluetooth Diagnostic Interface

1 x CD
