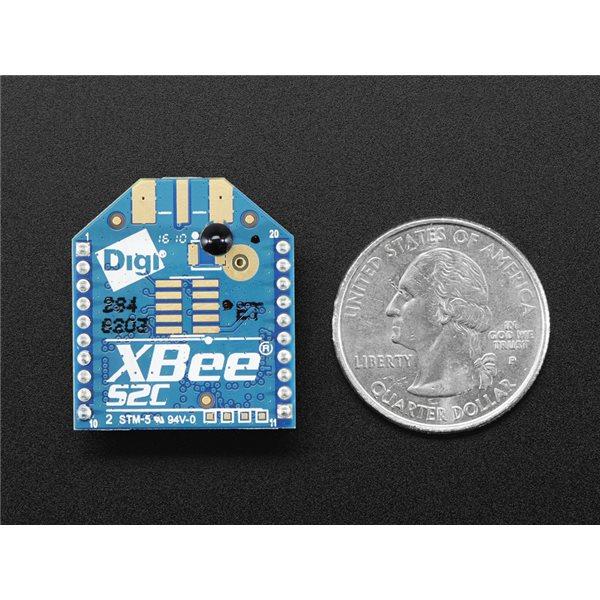

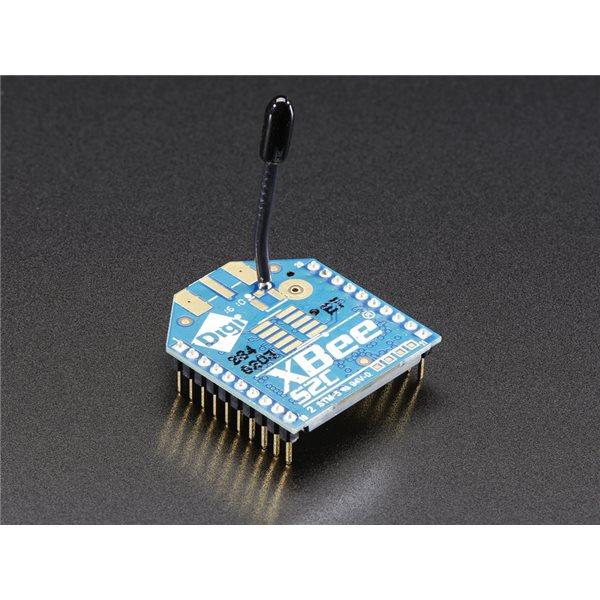

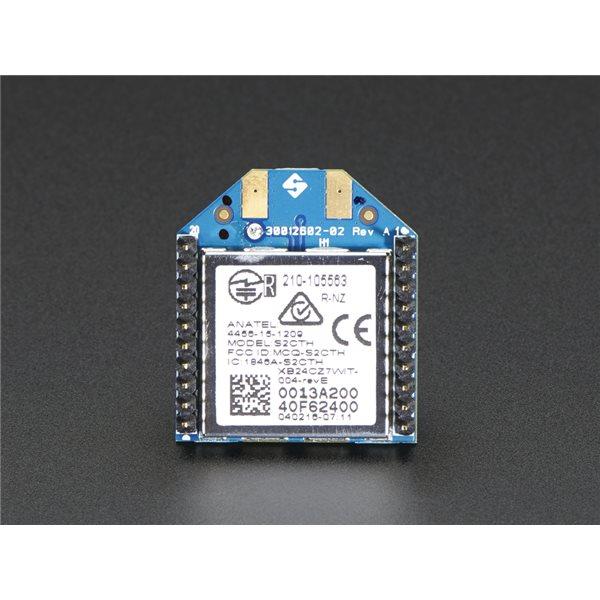

XBee Module - ZB Series S2C - 2mW with Wire Antenna

Description:

Series 2 modules cannot talk to Series 1 modules so if you already have some S1 type XBees you may want to stick with them. The S2 modules are not necessarily 'better' than S1 for many projects. They're just different as they use the "ZigBee" wireless stack instead of the 802.15.4. This makes them better for low power usage and advanced users who want a mesh topology (many XBees in a spread-out configuration) - but they are more difficult to use for basic point-to-point setups.

Features:

Specifications:

  • TX Peak Current: 40 mA
  • RX Current: 40 mA (@3.3 V)
  • Power-down Current: < 1 μA
  • Indoor/Urban: up to 133 ft (40 m)
  • Outdoor line-of-sight: up to 400 ft (120 m)
  • Transmit Power: 2 mW (3 dBm)
  • Receiver Sensitivity: -96 dBm
  • Dimensions: 24mm x 28mm x 9mm (0.94in x 1.1in x 0.3in)
  • 3.24g ( 0.14oz)

30 JD
Quantity
3 in stock
30 JD 1+ units
28.5 JD 10+ units
27 JD 25+ units
25.5 JD 100+ units
