Description:

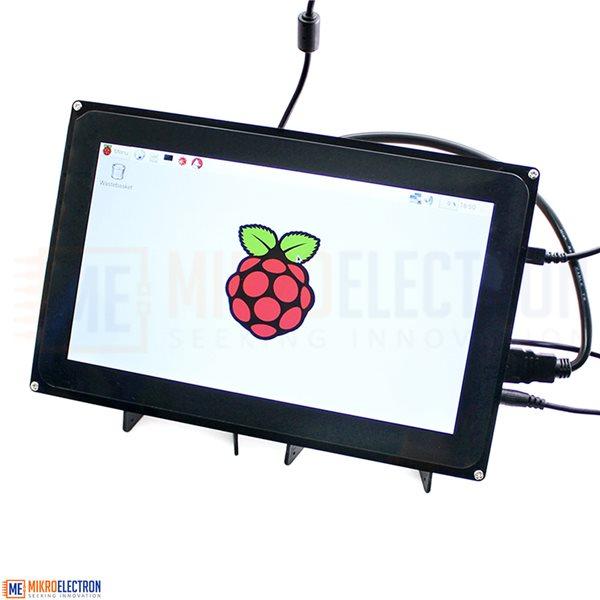

10.1inch HDMI LCD (H) (with case), 1024x600

1024×600, 10.1 inch Capacitive Touch Screen LCD, Supports Multi mini-PCs, Multi Systems, Multi Interfaces, Comes with US plug power adapter

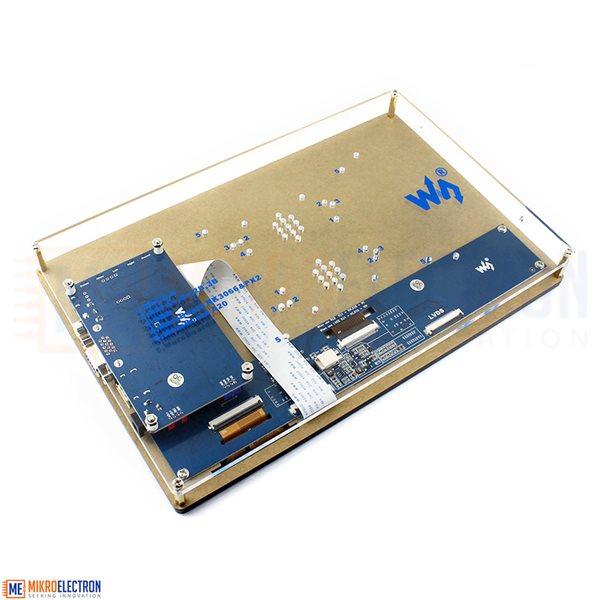

The LCD and Control Board

• 1024×600 high resolution
• Capacitive touch control

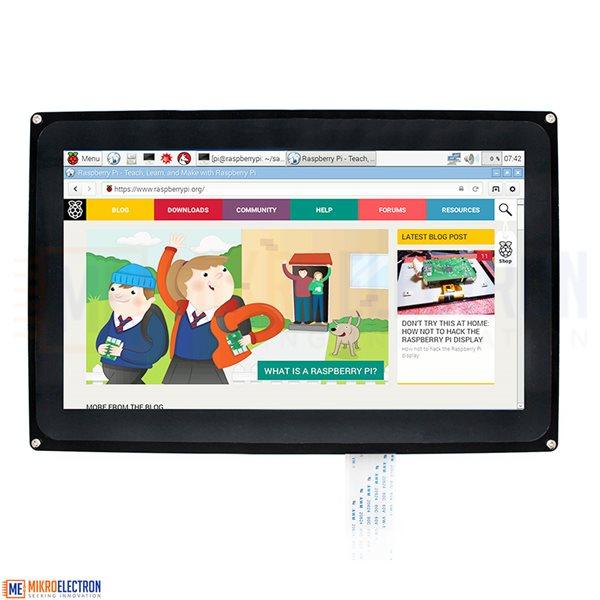

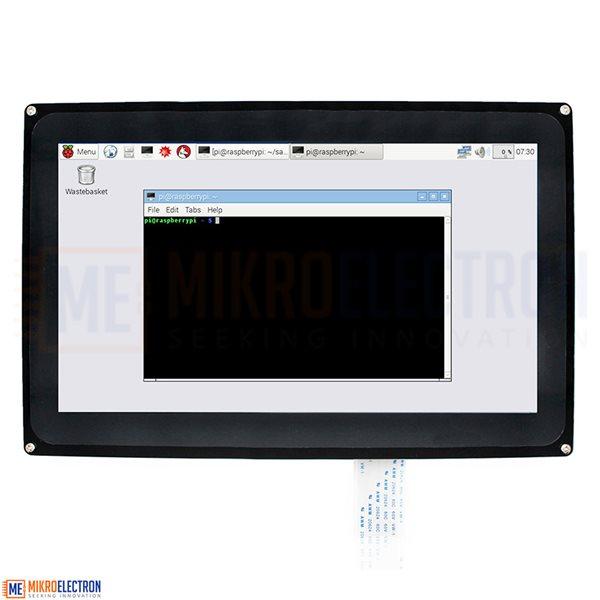

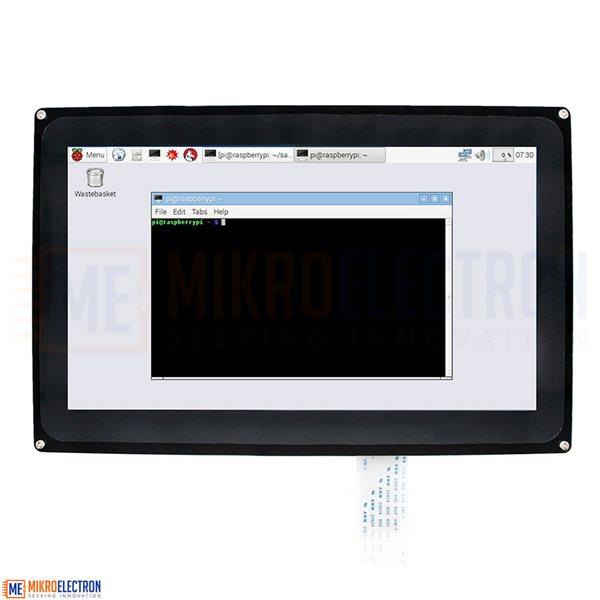

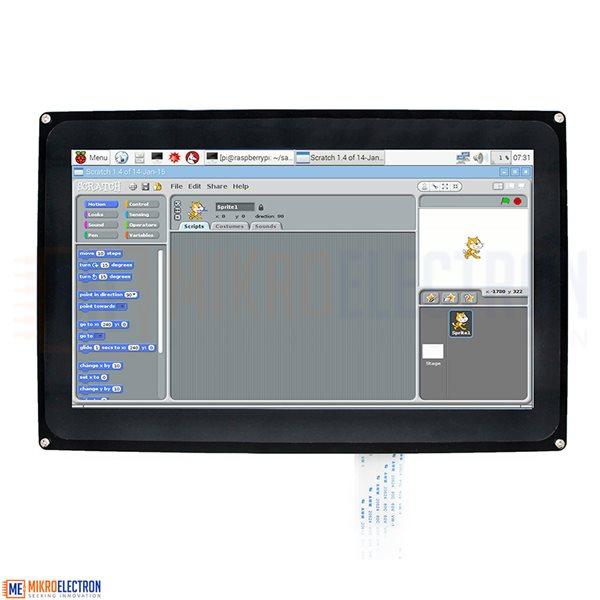

• When works with Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free
• When work as a computer monitor, supports Windows 10/8.1/8/7/XP, single touch, and driver free
• Supports BB Black, comes with Angstrom image
• Multi video input interfaces: HDMI, VGA, and AV(CVBS)

• Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
• Supports 100-level backlight adjustment
• Firmware is upgradable to support more new features (continually updated)

Note: to use the LCD with following mini-PCs, additional cables are required and should be purchased separately:
Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable
BB Black: HDMI cable

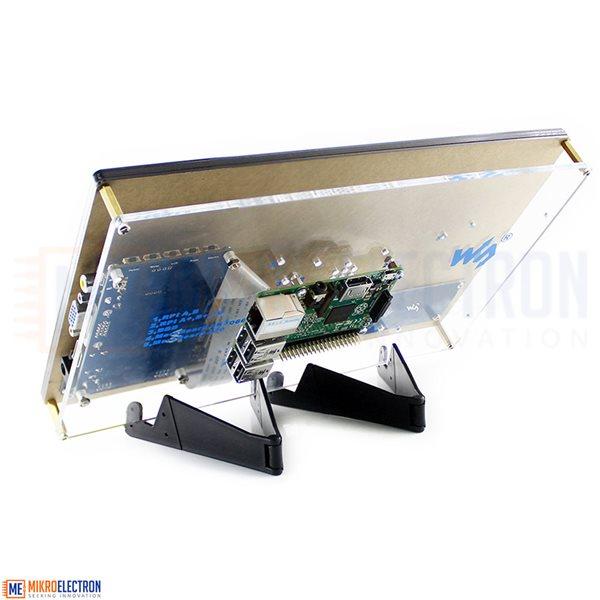

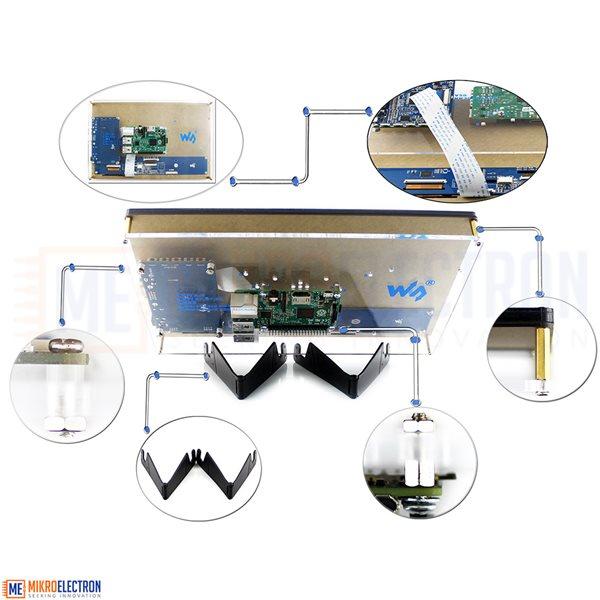

The Case:

• Material : high quality clear Acrylic

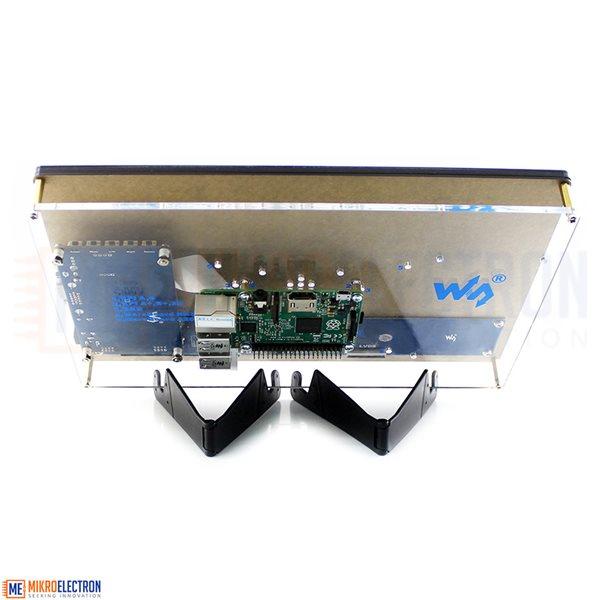

• Comes with bottom holder, 45° tilt angle
• Features mounting holes for Raspberry Pi 3B/2B/B+/A+/B, and BB Black

Note:

Raspberry Pi in the photos is NOT included

Kit include:

Weight: 0.946 kg

1. 10.1inch Capacitive Touch LCD (D) x 1
2. HDMI LCD control board x 1
3. HDMI cable x 1
4. USB type A plug to micro B plug cable x 1
5. 40-pin FFC x 1
6. Case for 10.1inch LCD × 1
7. Screws pack x 1
8. Bottom holder x 2

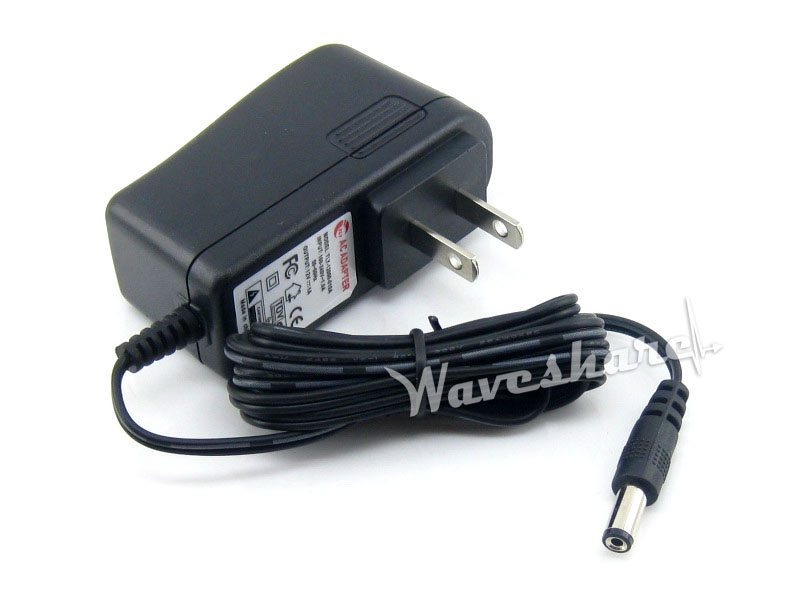

9. Power adapter US standard × 1
10. DVD × 1

1

2

3

4

5

6+7

8

9

10
