Nextion 5" 5 Inch Serial USART HMI TFT LCD Display Module 800 * 480 Intelligent Touch Panel 5V 410mA

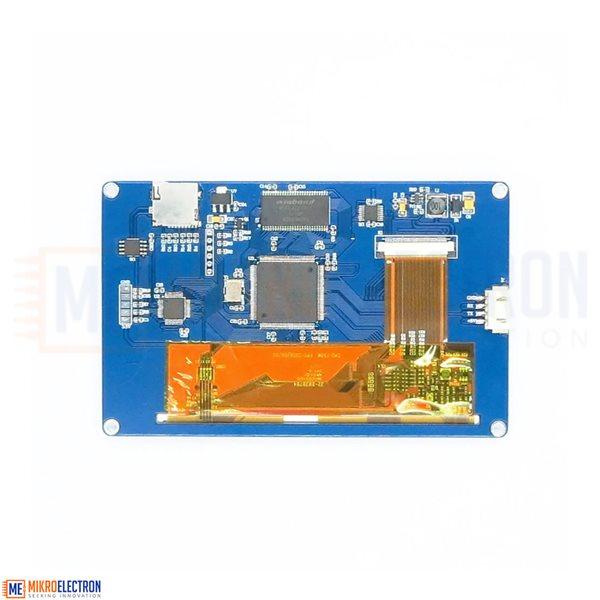

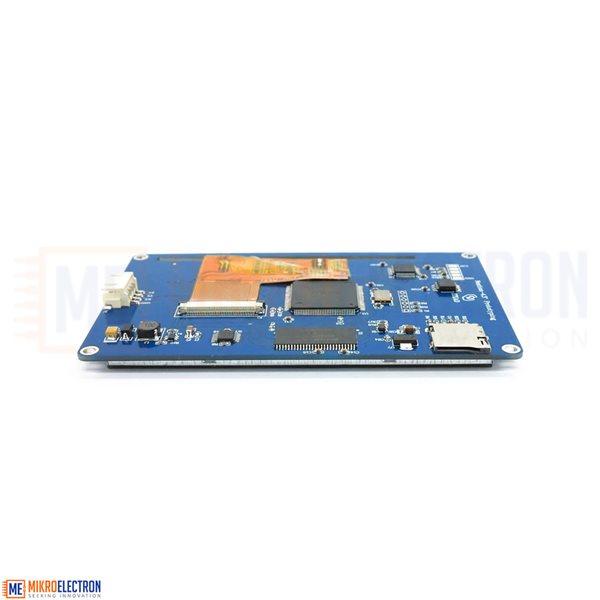

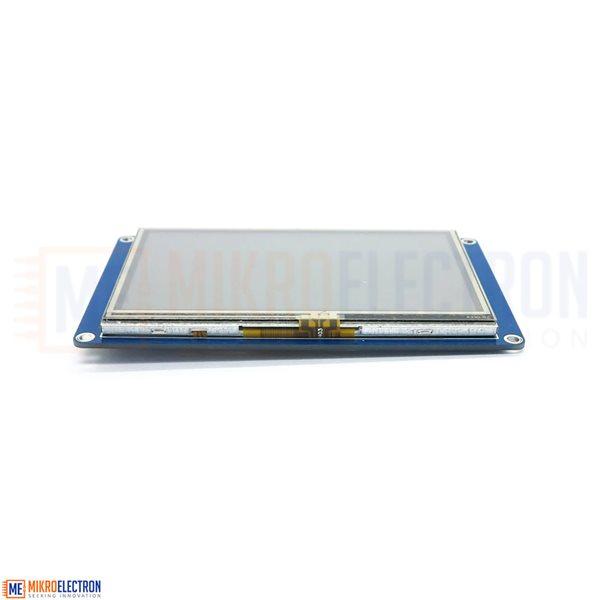

NEXTION 5" 5 INCH SERIAL USART HMI TFT LCD DISPLAY MODULE NX8048T050

Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.

Features:

• Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2, Arduino
• 800 x 480 Resolution
• RGB 65K true to life colours
• TFT Screen with integrated 4-wire Resistive Touch Panel For Raspberry Pi and Arduino
• Easy 4 pin interface to any TTL Serial Host For Arduino
• 16M Flash memory for User Application Code and Date
• On board micro-SD card for firmware upgrade
• Visual Area:108mm(L)×64.8mm(W)
• Adjustable Brightness:0~230 nit, the interval of adjustment is 1%
• 5V410mA power consumption

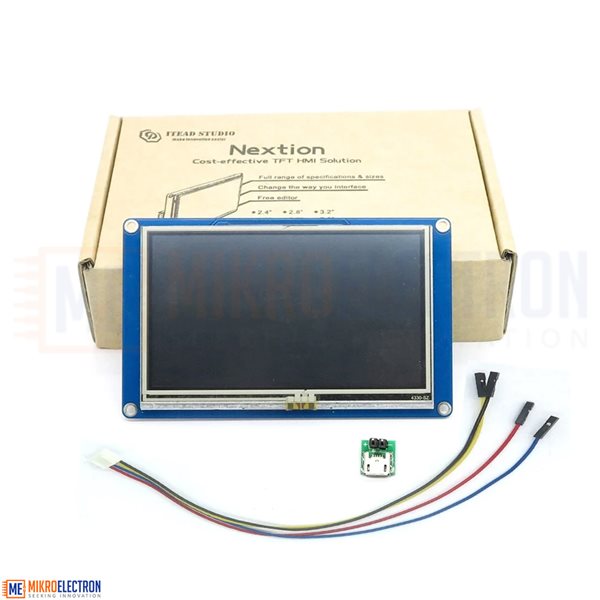

Kit include:

1 x 5 Inch Serial USART HMI TFT LCD Display
