Description:

Type: TFT

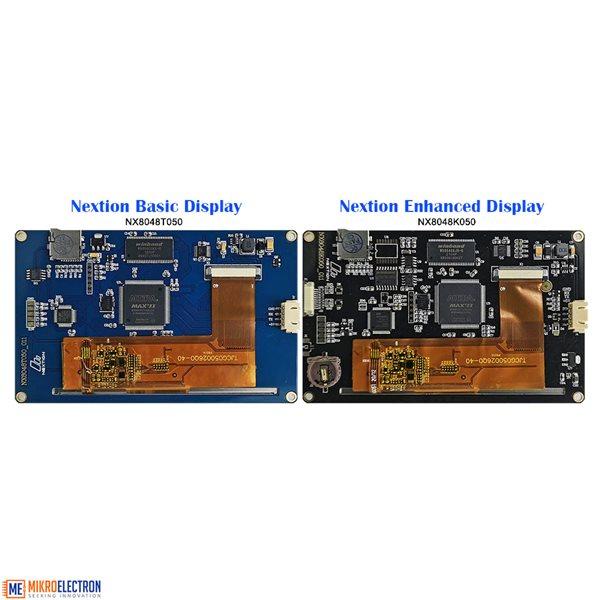

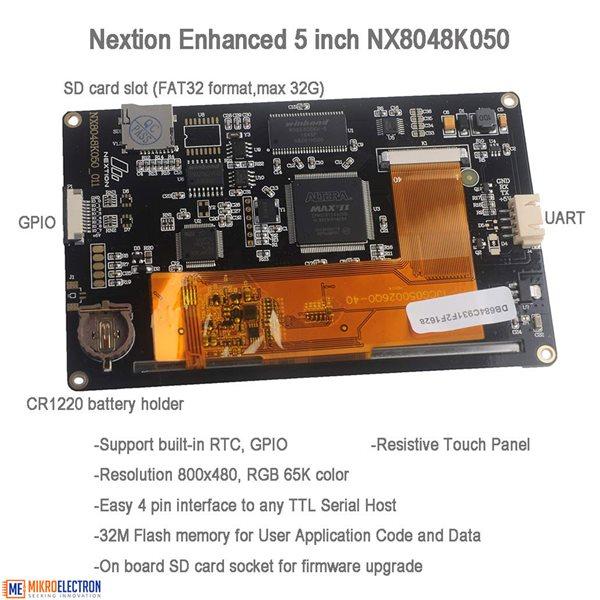

Model Number: NX8048K050

Support built-in RTC

Support GPIO

SD Card interface: support max max 32G Micro- TF/SD card (FAT32 file format)

Flash data storage space: 32MB

EEPROM: 1024 byte

RAM: 8192 byte

Instruction buffer: 1024 byte

Color: 65K (65536) colors

Resolution: 800x480 pixel

Adjustable Brightness:0~180 nit, the interval of adjustment is 1%

Press type: Resistive

Backlight: LED

Backlight lifetime (Average): more than the 30,000 Hour

Recommended power supply: 5V 500mA DC

color: black

Material: glass

Package Contents:

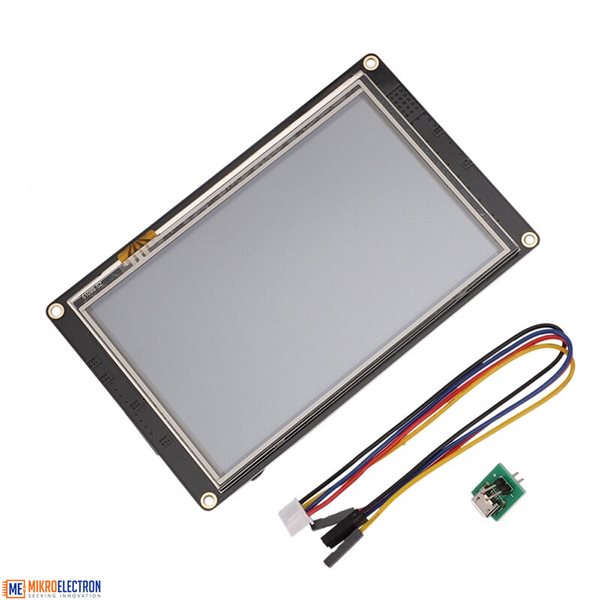

1 X 5.0 inch Nextion Enhanced HMI Display

1 X Micro- USB to 2P Connector Board

1 X 4-Pin Grove Cable

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
