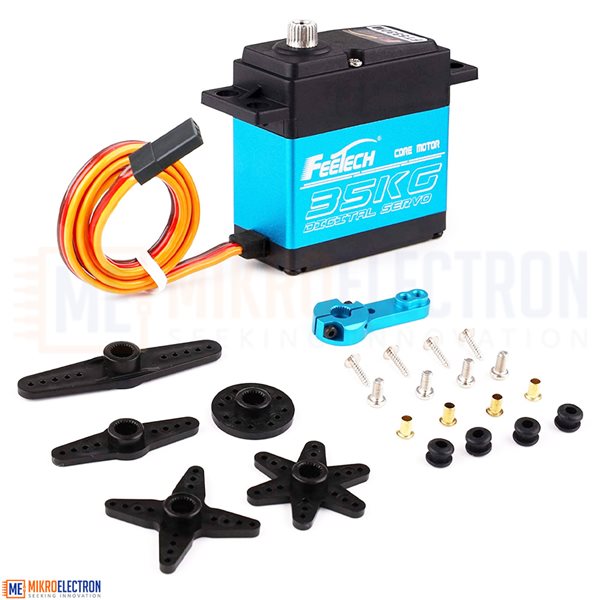

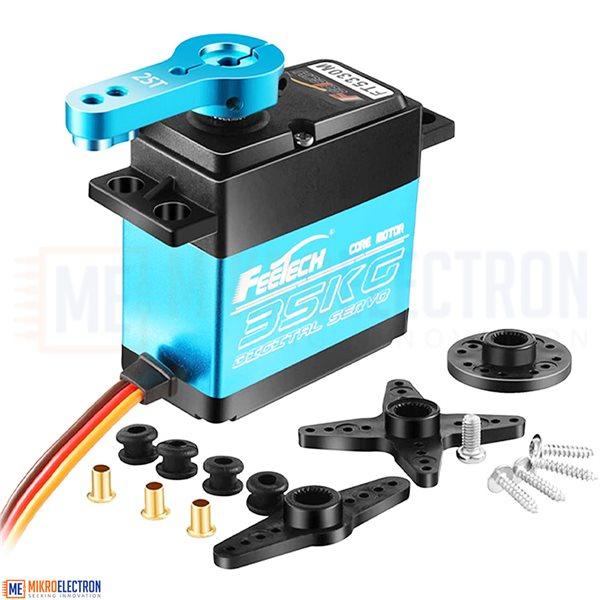

35KG Waterproof 7.4V 180 Degree High Speed Metal Gear Digital Servo Motor

Description:

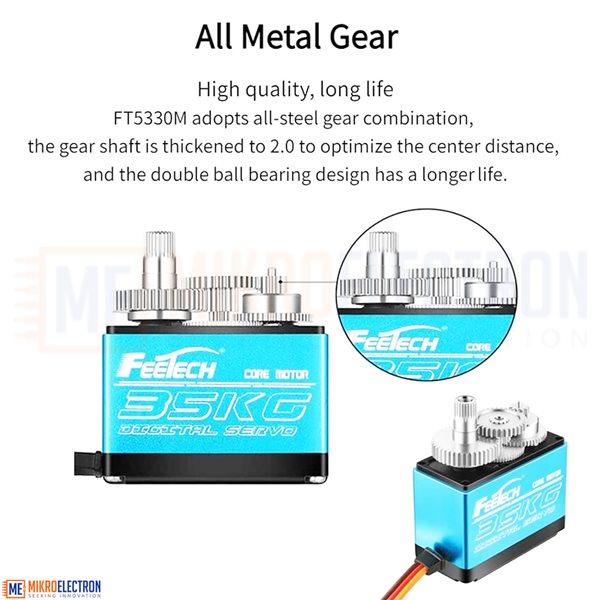

  • HIGH QUALITY SERVO: FT5330M servo motor is composed of a sturdy PA aluminum middle shell, a strong steel metal gear, and a hard iron shaft, provide higher stability and provide longer service life.
  • GREAT COMPATIBLE MOTOR: The servo motor system is controlled by pulse, compatible with 1/8 and 1/10 scale RC robots, trucks, off-road vehicles, robotic arms, and any application that uses a standard servo system.

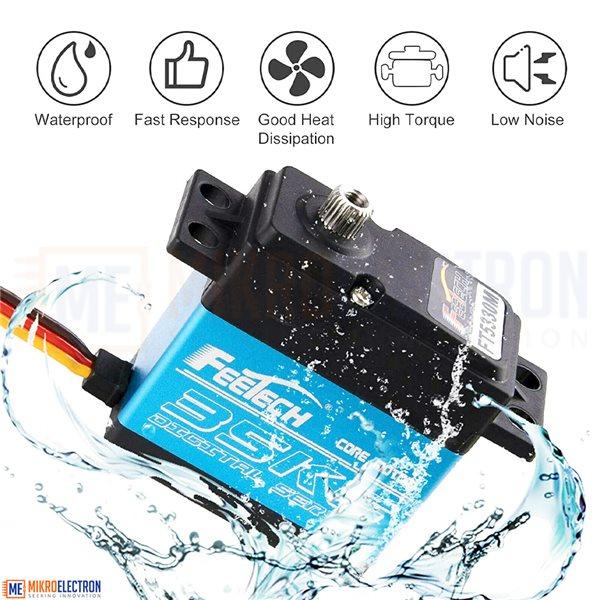

  • SERVO PROTECTION MECHANISM: The steering gear has IP54 waterproof performance and ball bearings.The output torque exceeds the overload torque, lasts 8S, or the temperature over 70 ℃, the steering gear will automatically stop the output torque. The overload torque can be modified.
  • HIGH ROTATION SPEED SERVO: A high-torque servo, the rotation angle is 180 degrees (at 500→2500μsec), when the power is stopped, it can rotate 360 degrees. Dead width ≤ 4 μsec. Durable and reliable.
  • STRONG STALL TORGUE MOTOR: The operating voltage range is 4V-8.4V, the stall torgue is (6V) 400.65oz/in(28.8kg/cm), (7.4V) 493.86oz/in(35.5kg/cm). The servo size is 55X20X43mm.

30 JD
Quantity
5 in stock
30 JD 1+ units
28.5 JD 10+ units
27 JD 25+ units
25.5 JD 100+ units
