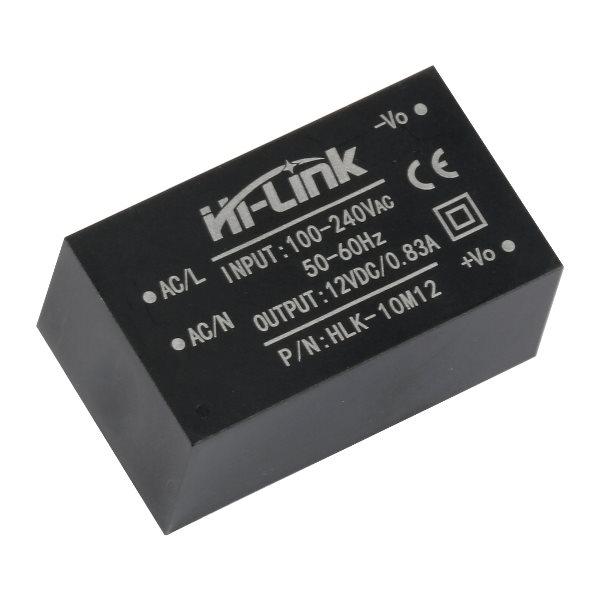

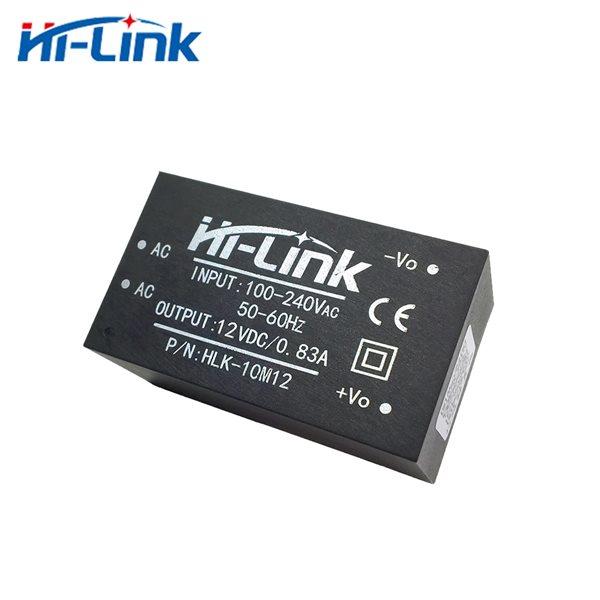

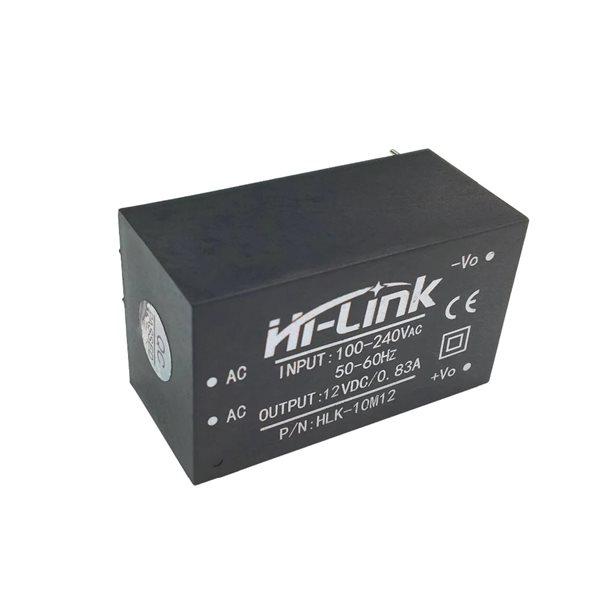

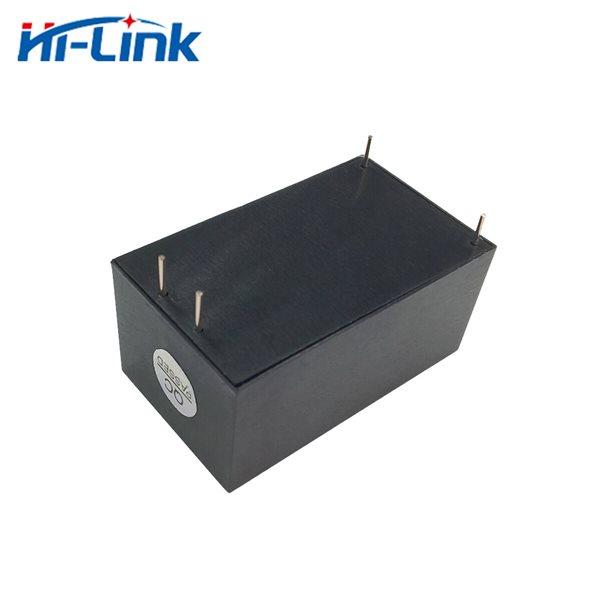

HLK-10M12 10W 12V AC DC ADAPTER POWER MODULE

Description:

HLK-10M12 10W 12V ac dc POWER MODULE

Product Description

The 10W ultra-small series power supply module is a small volume, high efficiency power module designed

for customers by Hi-Link. It has the advantage of global input voltage range, low temperature rise, low power

consumption, high efficiency, high reliability, high security isolation etc.,and has been widely used in smart home,

automation control, communication equipment, instruments and other industries.

Product Model
MODELSize (mm)Output power
(W)
Output voltage
(V)
Output current
(mA)
Notes
HLK-10M0346.9*27.8*21.8103.33000
HLK-10M05 1052000
HLK-10M09 1091100
HLK-10M12 1012830
HLK-10M15 1015660
HLK-10M24 1024420
Product Features

1. Ultra-thin, ultra-small, minimum volume in the industry


2. Universal input voltage (90~245Vac)


3. Low power consumption, environmental protection, no-load loss <0.1W


4. Low ripple and low noise

5. Good output short circuit and over-current protection and self-recovery

6. High efficiency, high power density

7. Input-output isolated voltage-proof 3000Vac

8. 100% full load aging and testing

9. High reliability, long life design, continuous working time more than 100000 hours

10. Meet UL,CE requirements; product design meets EMC and safety test requirements

11. Adopt high quality environmental protection waterproof heat conduction glue to fill seal,moisture-proof, anti- vibration, meet the IP65 standard of waterproof and dust proof

12. Economic solution, cost-effective

13. Work without an external circuit

14.1 year warranty

<<Contact Me for Docs>> Sales@hlktech.com



Input Features

Note:test at room temperature



ItemsTechnical ParametersUnitsNotes
No-load rated output
voltage
12.0±0.1Vdc
Full-load rated output
voltage
12.0±0.2Vdc
Short time maximum
output current
≥900mA
Rated output current830mA
Voltage regulation±0.2%
Load regulation±0.5%
Input low voltage efficiencyVin=115Vac, Output full load ≥80%
Input high voltage efficiencyVin=230Vac, Output full load ≥80%
Output ripple and noise
(mVp-p)
≤120
Rated input voltage, output full load. With 20MHz bandwidth oscilloscope, Load side 10uF and 0.1uF capacitance test.
mV
Switching on/off overshoot amplitude(Rated input voltage, output plus 10% load) ≤ 5%VO
Output over-current protectionOutput maximum load 110-130%A
Output short circuit protectionDirect short circuit in normal output and automatic return to normal operation after removal of short circuit No-damage to the whole device



Dimension and weight



Kit include:

1 x HLK-10M12

7 JD
Quantity
10 in stock
7 JD 1+ units
6.65 JD 10+ units
6.3 JD 25+ units
5.95 JD 100+ units
