TTGO LILYGO® LILY Pi ESP32 WIFI Bluetooth 3.5 inch capacitive touch screen 5V relay USB expansion port for Arduino

Description:

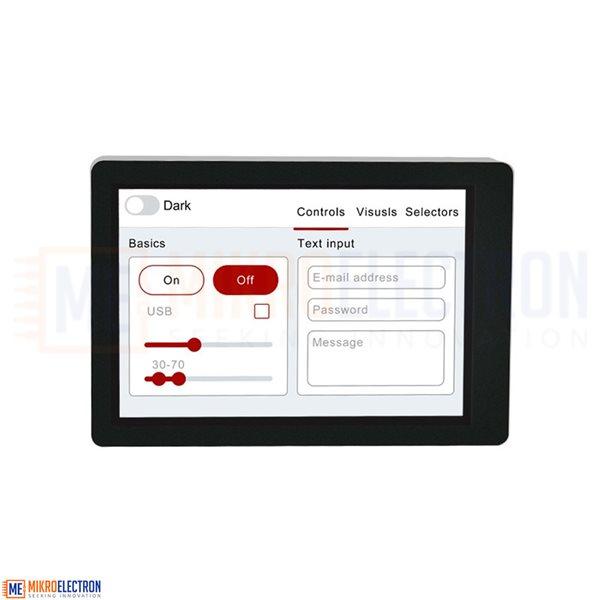

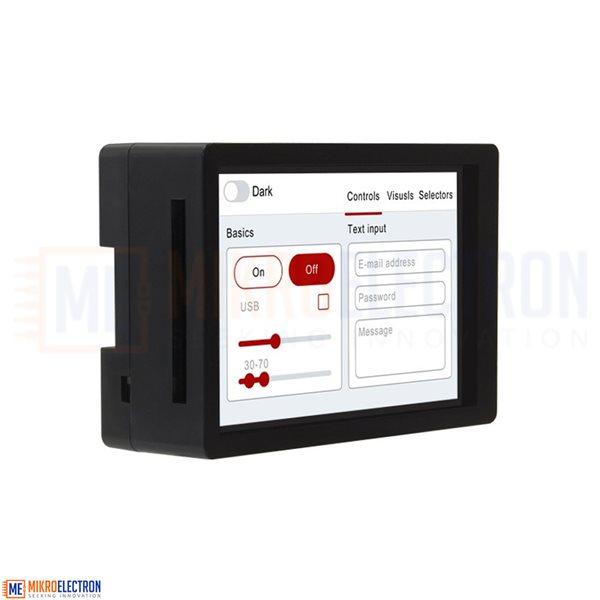

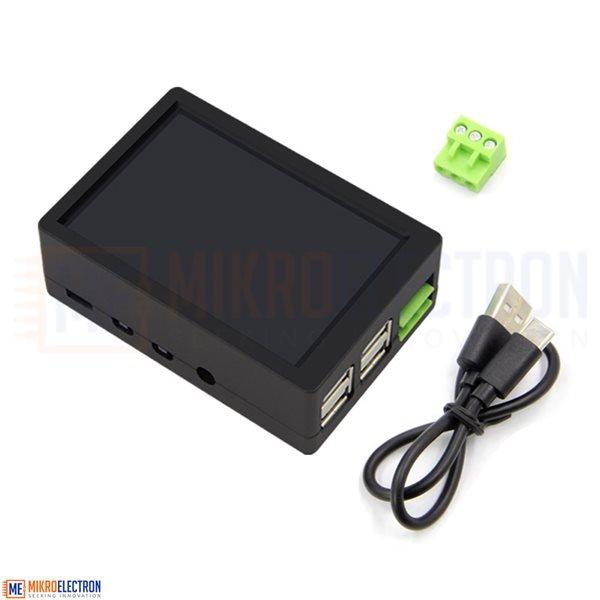

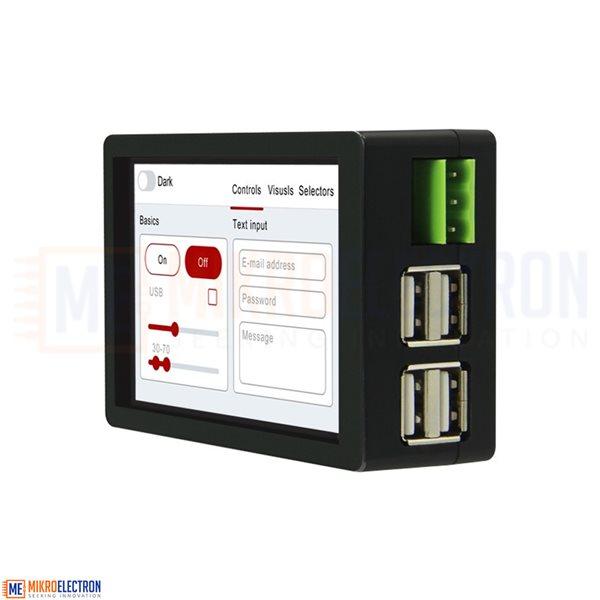

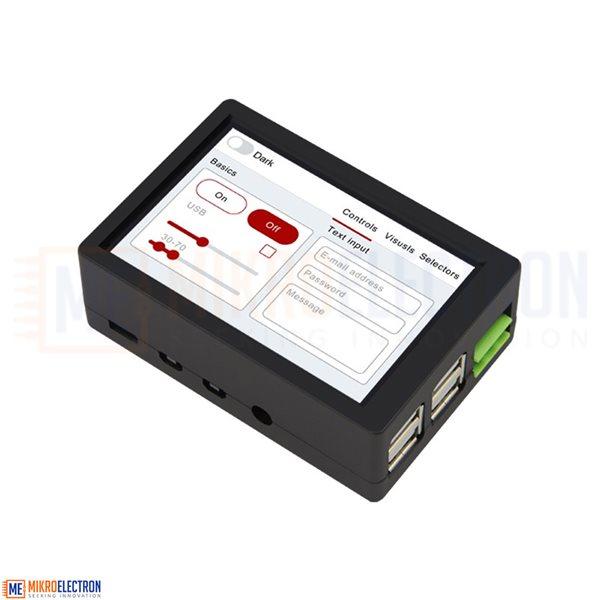

LILYGO® LILY Pi ESP32 WIFI Bluetooth 3.5 inch capacitive touch screen 5V relay USB expansion port for Arduino

Chip	ESP32-WAROVER
LCD	3.5 inch capacitive touch screen ST7796 FT6X36
USB TO TTL	CP2104
Relay	HFD3 5V 2A
Relay connector	5.08
DC-DC input	5-12V
DC Block Specifications	5.5X2.1
TYPE-C input	5V
USB output	5V 1A
Battery interface	H2.0 3.7V lithium battery
Battery switch	Toggle Switches
Button	RST button, custom button
RTC	PCF8563
Extension pin	2.54 2X20
Double-layer USB expansion port	Output 5V 1A
Double-layer USB interface	They are I2C/UART functions

Features:

LILYGO® LILY Pi ESP32 WIFI Bluetooth 3.5 inch capacitive touch screen 5V relay USB expansion port for Arduino

LILY Pi is designed and modified by the LILYGO team based on the Raspberry Pi appearance structure. The appearance is similar to the Raspberry Pi motherboard structure. The 2X20 expansion port next to it has reserved pins that match the Raspberry Pi GPIO, which is suitable for some Raspberry Pi Expansion function accessories.

LILYGO® LILY Pi ESP32 WIFI Bluetooth 3.5 inch capacitive touch screen 5V relay USB expansion port for Arduino

Based on this structure, a 3.5-inch capacitive touch screen expansion board is designed and made, which is suitable for use on Raspberry Pi.

Functionally based on ES32-WROVER (WIFI/Bluetooth) module, 5V relay, buttons, RTC, battery-powered interface, DC socket (5-12V input) battery-powered switch, USB expansion port I2C/UART, USB expansion port are designed The output power supply can supply power and control the current of equipment below 1A.

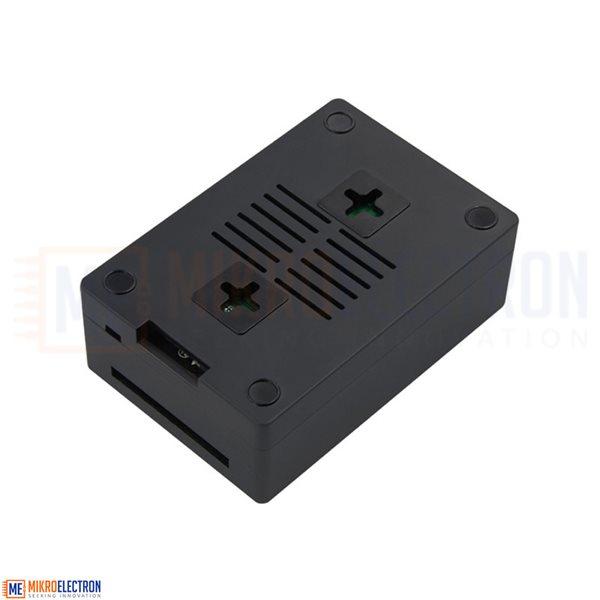

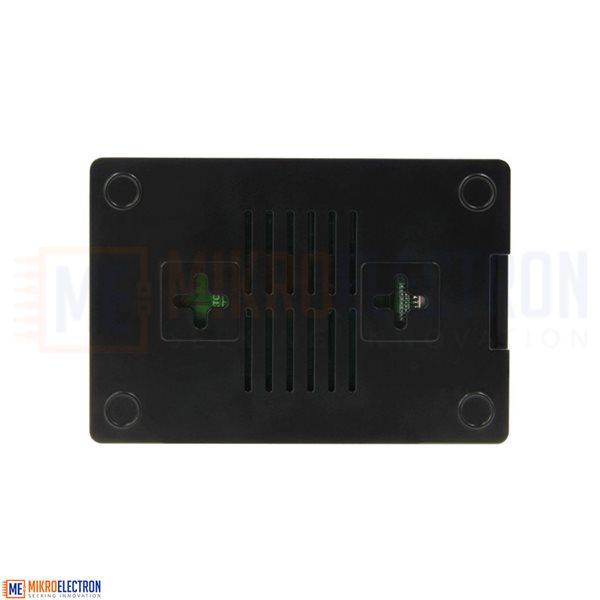

The back side retains the TF card socket in the same position as the Raspberry Pi, which is a self-popping card socket, which is convenient for plugging in and out.
