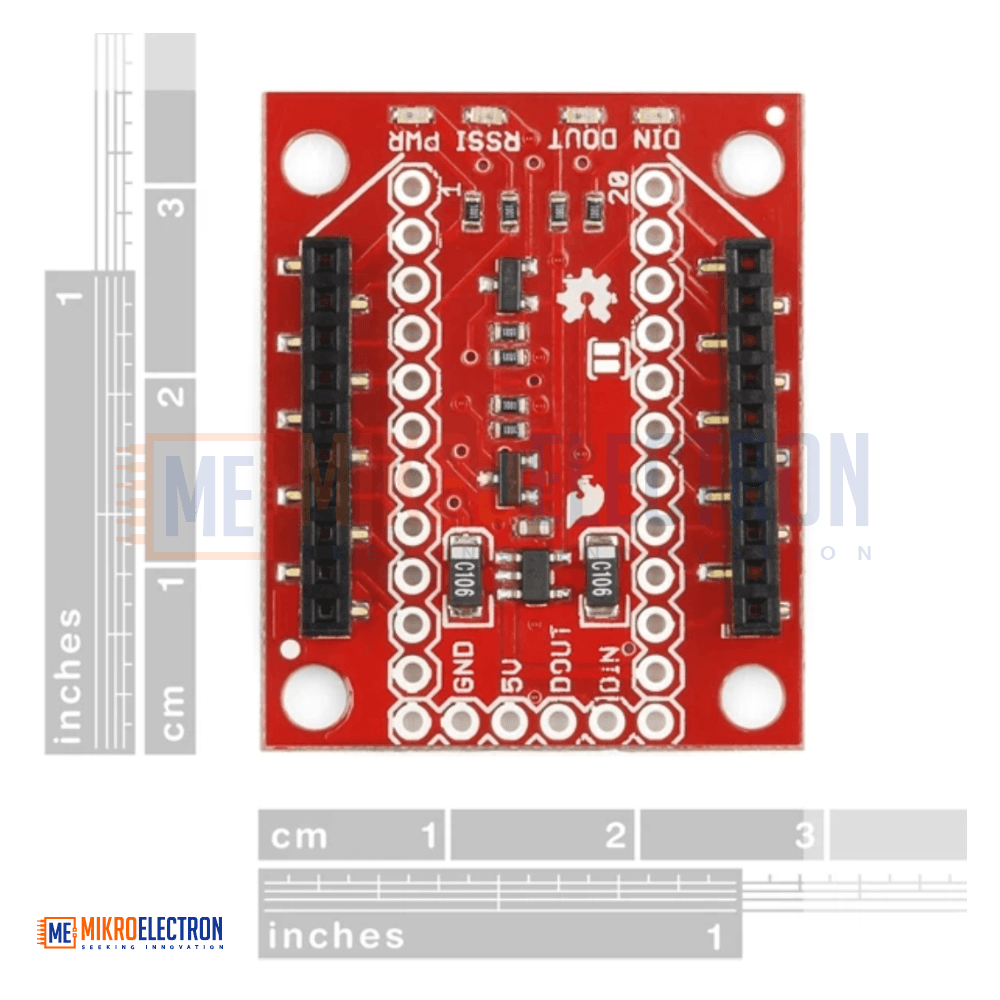

Description:

The XBee Explorer Regulated takes care of the 3.3V regulationsignal conditioningand basic activity indicators (PowerRSSI and DIN/DOUT activity LEDs). It translates the 5V serial signals to 3.3V so that you can connect a 5V (down to 3.3V) system to any XBee module. The board was conveniently designed to mate directly with Arduino Pro boards for wireless bootloading and USB based configuration.

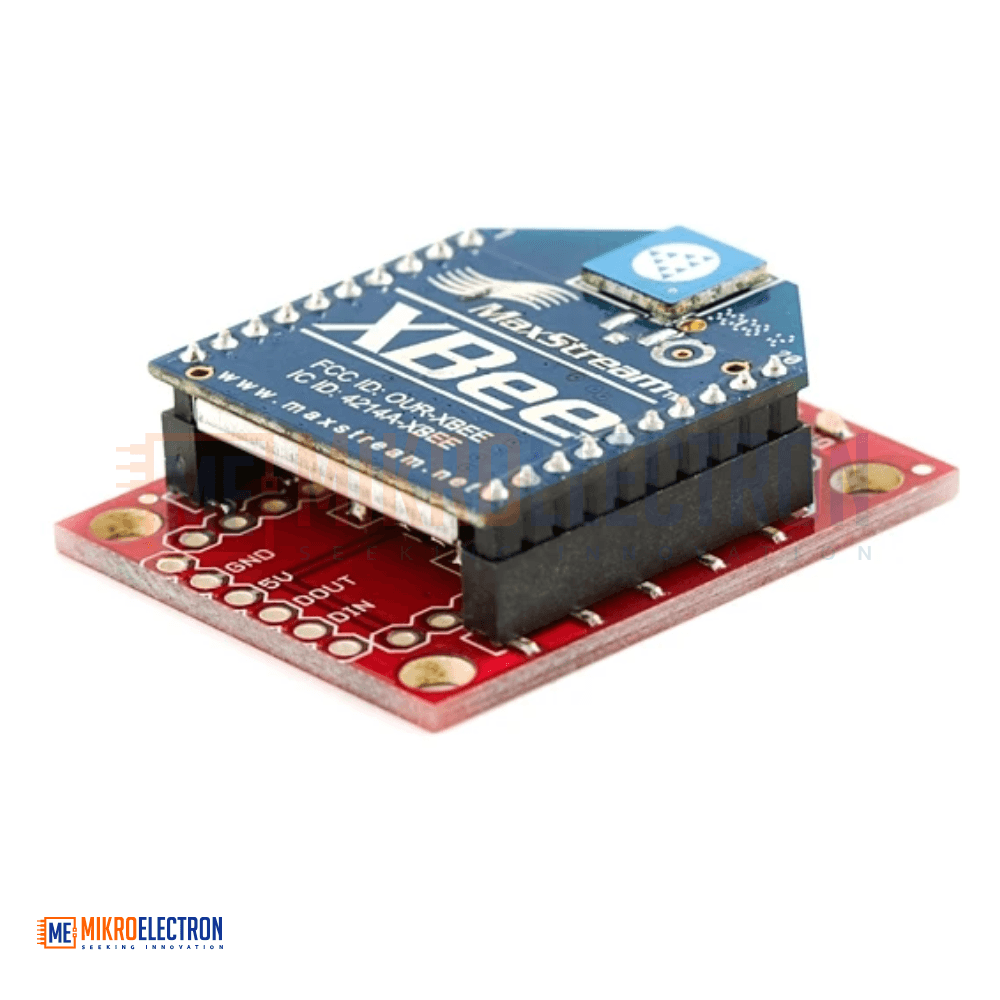

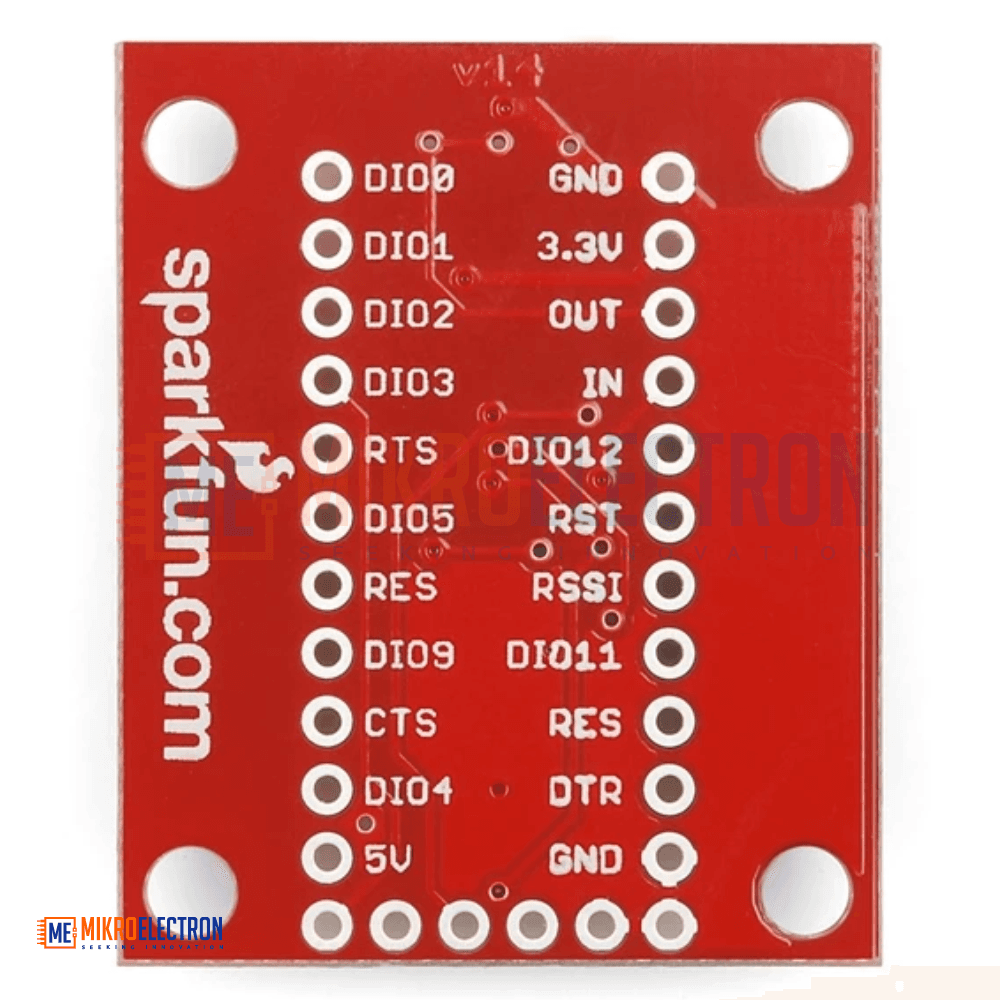

This unit works with all XBee modules including the Series 1 and 2standard and Pro versions. Plug an XBee into this breakout and you will have direct access to the serial and programming pins on the XBee unit and will be able to power the XBee with 5V.

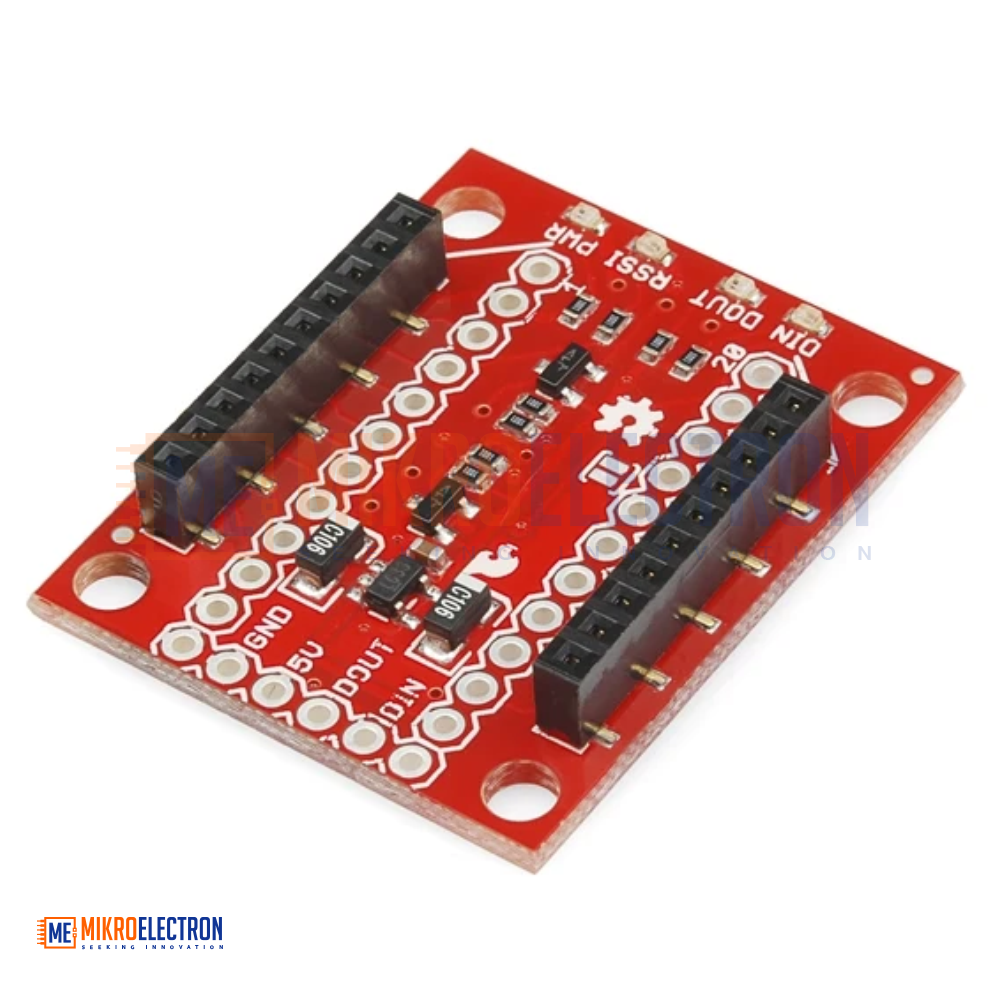

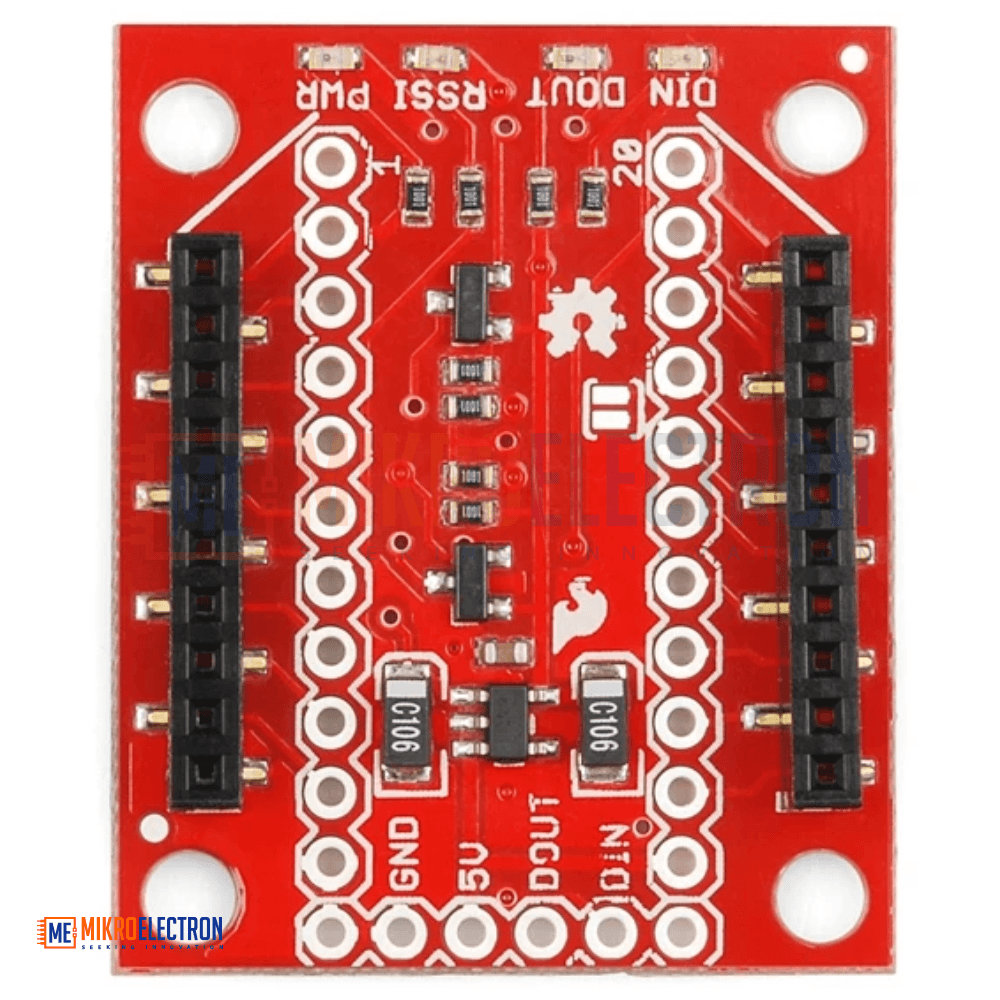

This board comes fully populated with 3.3V regulator (16V max input)XBee socketfour status LEDsand level shifting. In the latest revision the diode level shifter is replaced with a more robust MOSFET level shifter. This board does not include and XBee module. XBee modules sold below.

Documents:

• Schematic And Eagle Files

• X-CTU Software
• XBee Introduction and Buying Guide
• GitHub (Design Files)
