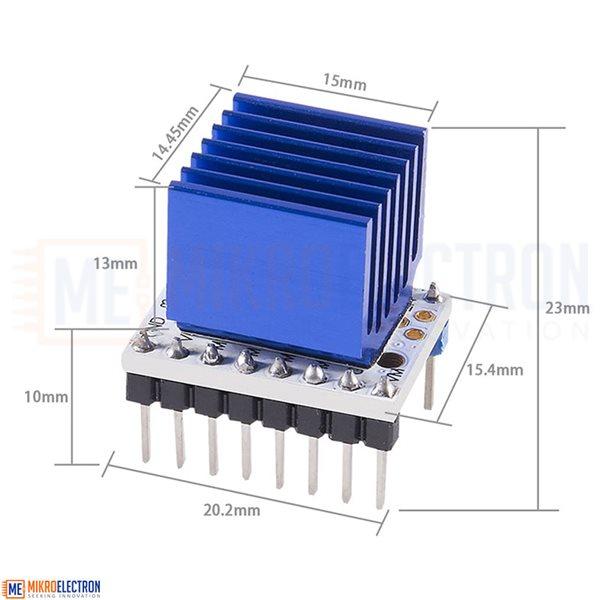

Stepper Driver Module with Heat Sink - TMC2208 V1.2

Description:

TMC2208 V1.2 Stepper Driver Module with Heat Sink Screwdriver for 3D Printer Controller Mother Boards Reprap Ramps1.4 MKS Prusa i3 Ender-3 Pro

3D Printer Stepper Motor Driver


MC2208 V1.2 is an ultra-quiet two-phase stepper motor drive chip

continuous drive current 1.4A

peak current 2A

voltage range 4.75V-36V

256 subdivision

The flexible microPlyer interpolation unit provides up to 256 subdivisions, allowing perfect sinusoidal control even in systems with limited pulse frequencies

These are also designed because stealthChop2 ultra-quiet technology is widely used in 3D printing


شرح :


Note:

TMC2208 V1.2 driver needs extra fan to cool it, otherwise the high temperature may destroy it.

Don't connect the motor when measuring the voltage, otherwise it is easy to burn the driver.

Power should be connected when measuring voltage, do not just connect USB power supply.


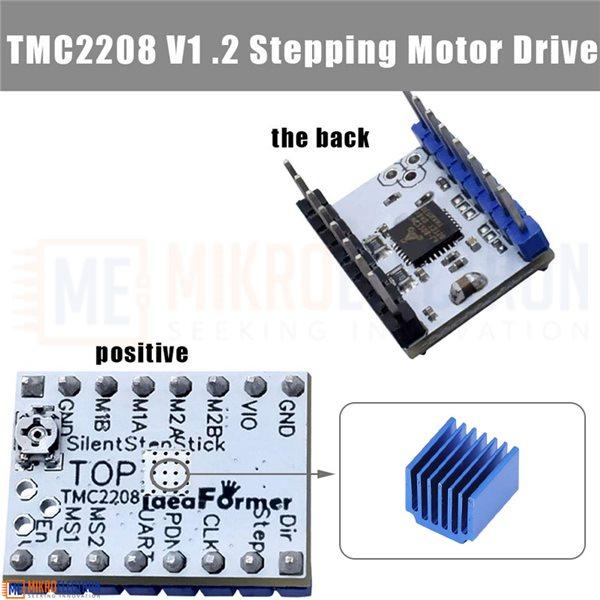

Features:

Interface: Step/Dir

Configuration: CFG Pins or UART

Native Microsteps: up to 1/256

MicroPlyer Microsteps: 1/256

Logic Voltage (VIO): 3-5V

Motor Voltage (VM): 4.75-36V

Motor Phase Current max: 1.2A RMS, 2.0A Peak


Kit include:

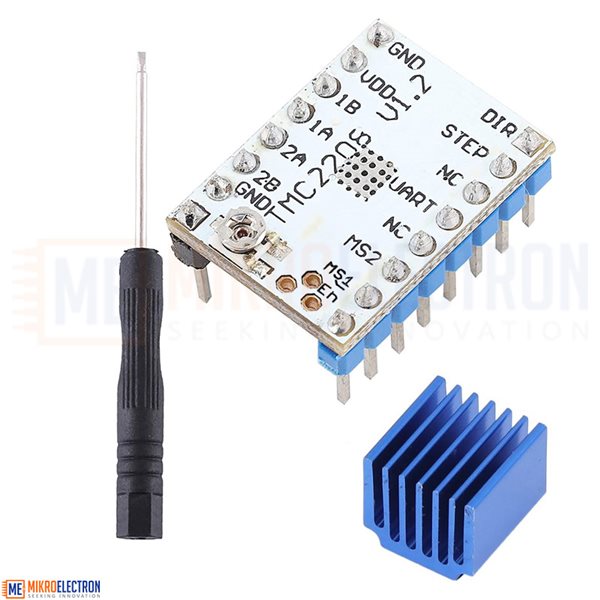

1 x TMC2208 V1.2 Stepper Motor Driver

1 x Heat Sink

1 x Screwdriver
