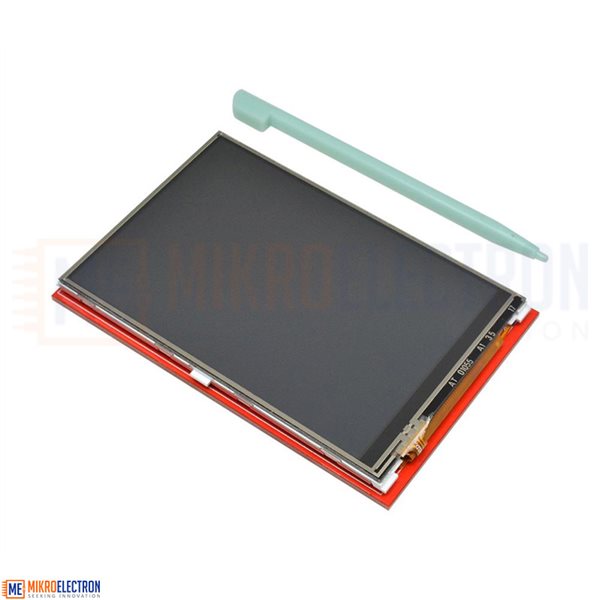

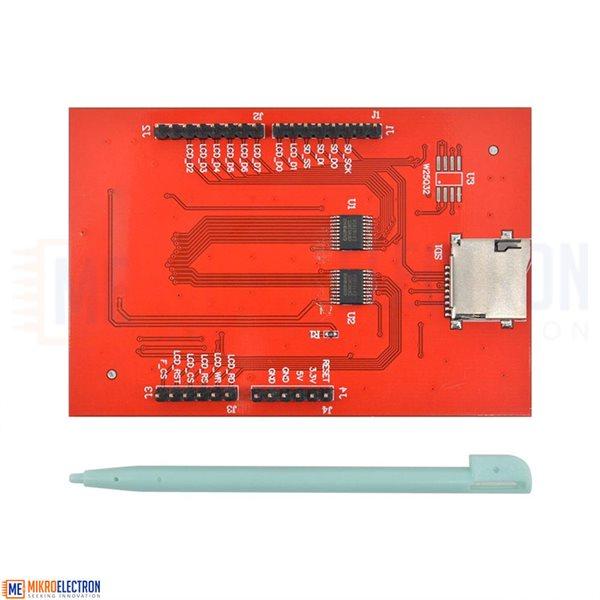

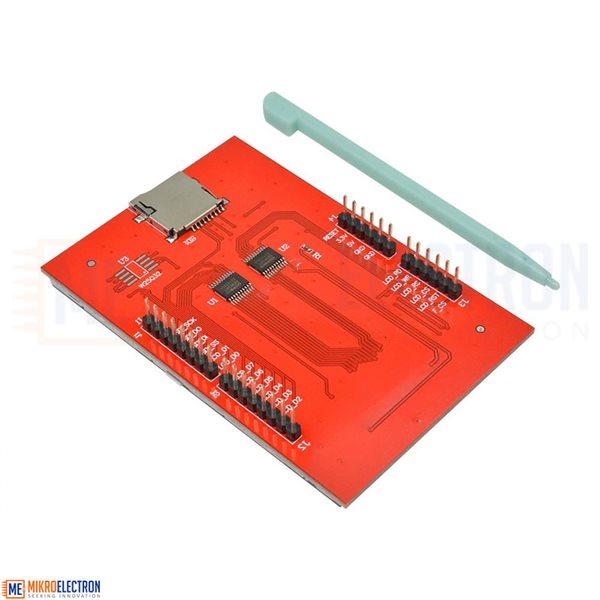

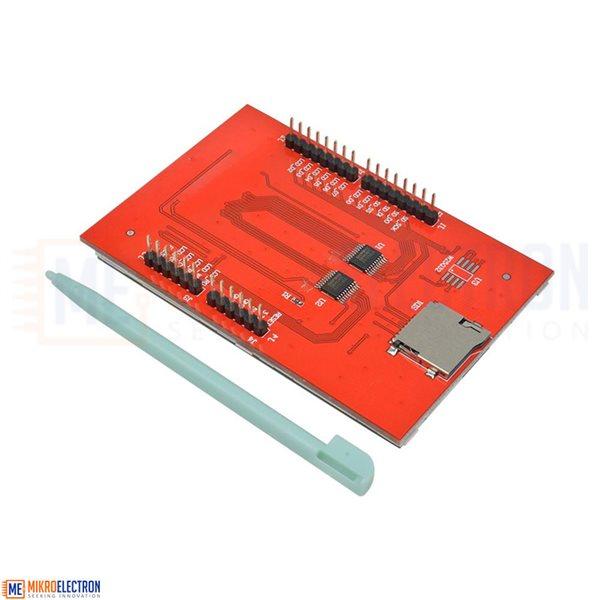

3.5 inch TFT LCD Touch Screen Display Module Board Uno Shield 480 x 320 Pixel
Description:
- 3.5-inch color screen, support 65K color display, display rich colors
- 480X320 resolution, optional touch function
- Easy to expand the experiment with SD card slot
- Provide a rich sample program
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
- Using the SPI serial bus, it only takes a few IOs to illuminate the display
Features:
Name | Parameter |
Display Color | RGB 65K color |
Screen Size | 3.5(inch) |
Type | TFT |
Driver IC | ILI9488 |
Resolution | 480*320 (Pixel) |
Module Interface | 4 Wire SPI Interface |
Active Area (AA area) | 48.96x73.44(mm) |
Module PCB Size | 56.34x98(mm) |
Operating Temperature | -20℃~60℃ |
Storage Temperature | -30℃~70℃ |
VCC power voltage | 3.3V~5V |
Logic IO port voltage | 3.3V(TTL) |
Rough Weight(Package containing) | With touch: 57 (g) |
Kit include:
1 x 3.5″ Inch TFT Touch Screen Module
Documents:
https://www.innovationmerge.com/2020/06/21/Getting-started-with-3-5-TFT-LCD-with-Arduino-UNO/
